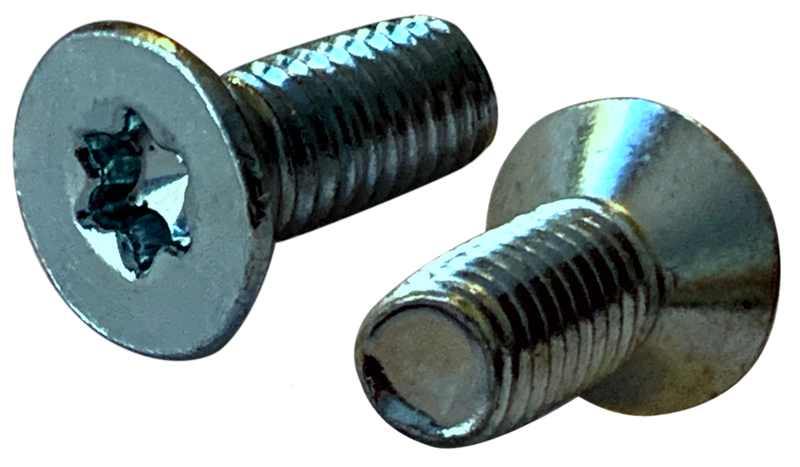

1/4"-20 x 3/4" Trilobe Thread Forming Screws for Metal / 6-Lobe / Flat Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 20 TPI · Coarse
- ASME B18.6.3
$224.69
$0.562 / pc
Package of 400
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
1/4"-20 x 3/4" Trilobe Thread Forming Screws for Metal / 6-Lobe / Flat Head / Low Carbon Steel / Zinc
RoHS Compliant
$224.69
$0.562/pc
Trilobe Thread Forming Screws for Metal / Six-Lobe (Torx®) / Flat Head
Family: RTF
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
1/4"-20 x 3/4" Trilobe Thread Forming Screws for Metal / 6-Lobe / Flat Head / Low Carbon Steel / Zinc
SKU: 1412RTF-400
Technical Specifications
Thread Size
1/4"-20
Thread Series
UNC
Thread Pitch
20 TPI
Thread Coverage
Full Thread
Thread Action
Thread Forming
Tapping Type
Trilobular
Length
3/4"
Material
Steel
Finish
Zinc
Drive
6-Lobe
Head Style
Flat Head
Standard
ASME B18.6.3
Country of Origin
Import
Head Diameter (in)
0.452–0.507
Measurement System
Inch
Head Height (in)
0.153
SKU
1412RTF-400
