1/4"-20 x 3/4" Trilobe Thread Forming Screws for Metal / Phillips / Oval Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 20 TPI · Coarse
- ASME B18.6.3
$99.92
$0.500 / pc
Package of 200
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description

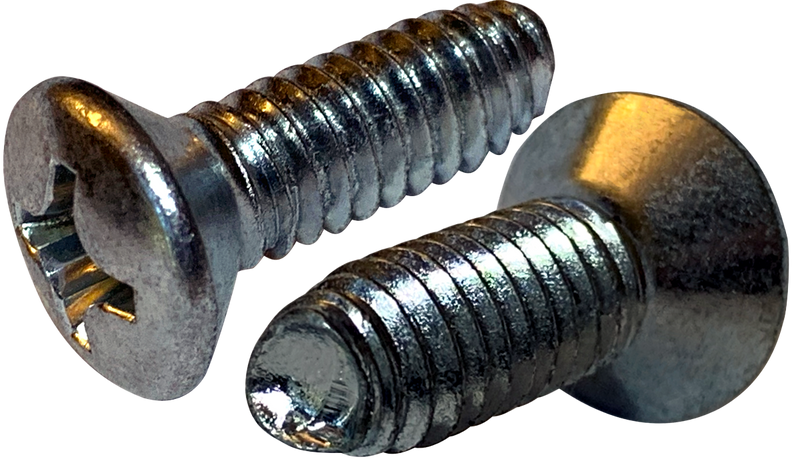

1/4"-20 x 3/4" Trilobe Thread Forming Screws for Metal / Phillips / Oval Head / Low Carbon Steel / Zinc
1/4"-20 x 3/4" thread-forming screw in Low Carbon Steel, zinc finish. For displacing material to form a thread with no chips and no cleanup.
- OVAL HEAD — countersunk with a domed top — flush seating with a finished face
- PHILLIPS DRIVE — the familiar cross recess; it is designed to cam out under load, so ease off the clutch at depth
- ZINC PLATED — an electroplated barrier for interior and sheltered work; it will not survive sustained weather or contact with treated lumber
- CARBON STEEL — strong and inexpensive, but it depends entirely on its plating for corrosion protection
- COARSE THREAD (UNC) — the default inch thread — faster to run down, more tolerant of dirt, damage and plating build-up
RoHS Compliant
$99.92
$0.500/pc
Trilobe Thread Forming Screws for Metal / Phillips / Oval Head
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
1/4"-20 x 3/4" Trilobe Thread Forming Screws for Metal / Phillips / Oval Head / Low Carbon Steel / Zinc
SKU: 1412RPO-200
Technical Specifications
Thread Size
1/4"-20
Thread Series
UNC
Thread Pitch
20 TPI
Thread Action
Thread Forming
Tapping Type
Trilobular
Length
3/4"
Material
Steel
Finish
Zinc
Drive
Phillips
Head Style
Oval Head
Standard
ASME B18.6.3
Country of Origin
Import
Measurement System
Inch
SKU
1412RPO-200
