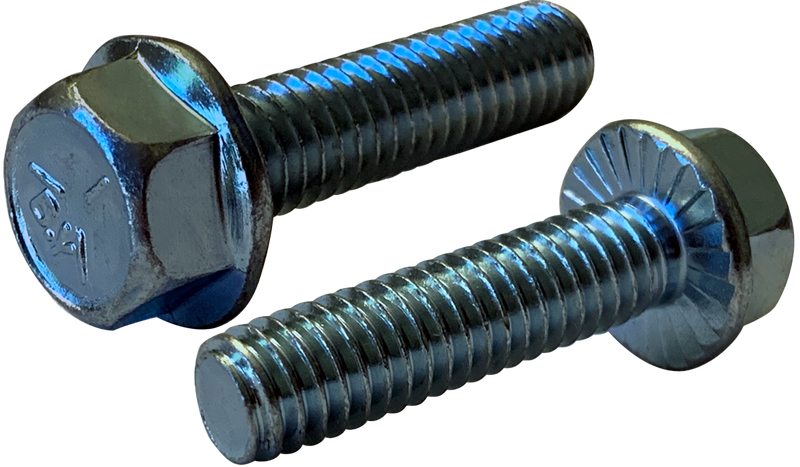

1/4"-20 x 2" Serrated Hex Flange Screws / Unslotted / Grade 5 / Zinc
- Steel
- Grade 5
- Zinc
- 20 TPI · Coarse
- ASME B18.6.3
$104.28
$1.04 / pc
Package of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
1/4"-20 x 2" Serrated Hex Flange Screws / Unslotted / Grade 5 / Zinc
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
$104.28
$1.04/pc
Serrated Hex Flange Screws / Unslotted / Grade 5
Family: MWW5
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
1/4"-20 x 2" Serrated Hex Flange Screws / Unslotted / Grade 5 / Zinc
SKU: 1432MWW5-100
Technical Specifications
Thread Size
1/4"-20
Thread Series
UNC
Thread Pitch
20 TPI
Thread Coverage
Full Thread
Length
2"
Material
Steel
Grade
Grade 5
Finish
Zinc
Drive
External Hex
Head Style
Hex Washer Serrated
Standard
ASME B18.6.3
Country of Origin
Import
Point Type
Machine (Blunt)
Tensile Strength
120 ksi (827 MPa)
Hardness
C25-C34
Head Diameter (in)
3/8
Measurement System
Inch
Head Height (in)
0.216–0.240
Width Across Flats
3/8"
