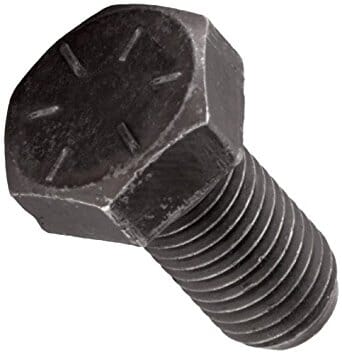

1/4"-20 x 1/2" Hex Cap Screws, Full Thread / Medium Carbon Steel / Grade 8 / Plain / Made in USA / SAE J429; ASME B18.2.1
$313.75
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
1/4"-20 x 1/2" Hex Cap Screws, Full Thread / Medium Carbon Steel / Grade 8 / Plain / Made in USA / SAE J429; ASME B18.2.1
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Plain |
| Grade | Grade 8 |
| Size | 1/4"-20 |
| Length | 1/2" |
| Head Style | Hex Head |
| Thread Pitch | 20 TPI |
| Thread Class | Coarse |
| Hardness | C33 - C39 |
| Tensile Strength | 150000 |
| Standard | ASME B18.2.1 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
Hex Cap Screw 8 Steel Full Thread
Family: 452
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1/4"-20
Material
Alloy Steel
Grade
Grade 8
Head Style
Hex Head
Country of Origin
US
Thread Pitch
20 TPI
Tensile Strength
150000
Hardness
C33 - C39
SKU
452002-3300
