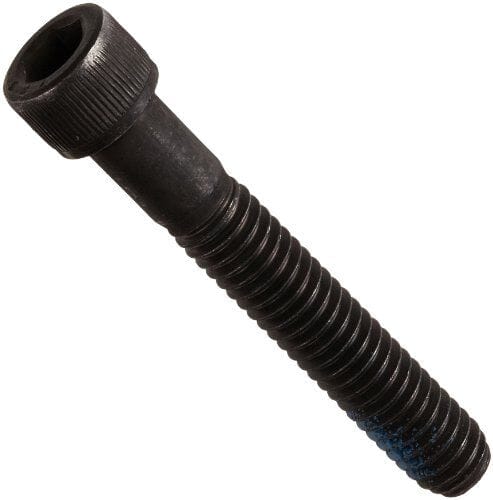

1 3/8"-12 x 4 1/2" Socket Head Cap Screws, Partial Thread / Alloy Steel / Thermal Black Oxide
- Steel
- Thermal Black Oxide
- 12 TPI · Fine
- ASME B18.3, ASTM F835
$155.36
$155.36 / pc
Package of 1
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
1 3/8"-12 x 4 1/2" Socket Head Cap Screws, Partial Thread / Alloy Steel / Thermal Black Oxide
Frequently Asked Questions
What hex key size do I need for this socket head cap screw?
Hex socket size depends on the screw thread size. Common sizes: #6 uses 7/64", #8 uses 9/64", #10 uses 5/32", 1/4" uses 3/16", 5/16" uses 1/4", 3/8" uses 5/16". For metric: M3 uses 2.5mm, M5 uses 4mm, M6 uses 5mm, M8 uses 6mm, M10 uses 8mm.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$155.36
$155.36/pc
Socket Head Cap Screw, Partial Thread / Alloy Steel / Black Oxide
Family: 581
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
1 3/8"-12 x 4 1/2" Socket Head Cap Screws, Partial Thread / Alloy Steel / Thermal Black Oxide
SKU: 581016-1
Technical Specifications
Thread Size
1 3/8"-12
Thread Series
UNF
Thread Pitch
12 TPI
Thread Coverage
Partial Thread
Length
4 1/2"
Material
Steel
Finish
Thermal Black Oxide
Drive
Hex Socket (Allen)
Head Style
Socket Head
Standard
ASME B18.3, ASTM F835
Tensile Strength
180000
Hardness
C37 - C45
Measurement System
Inch
SKU
581016-1
