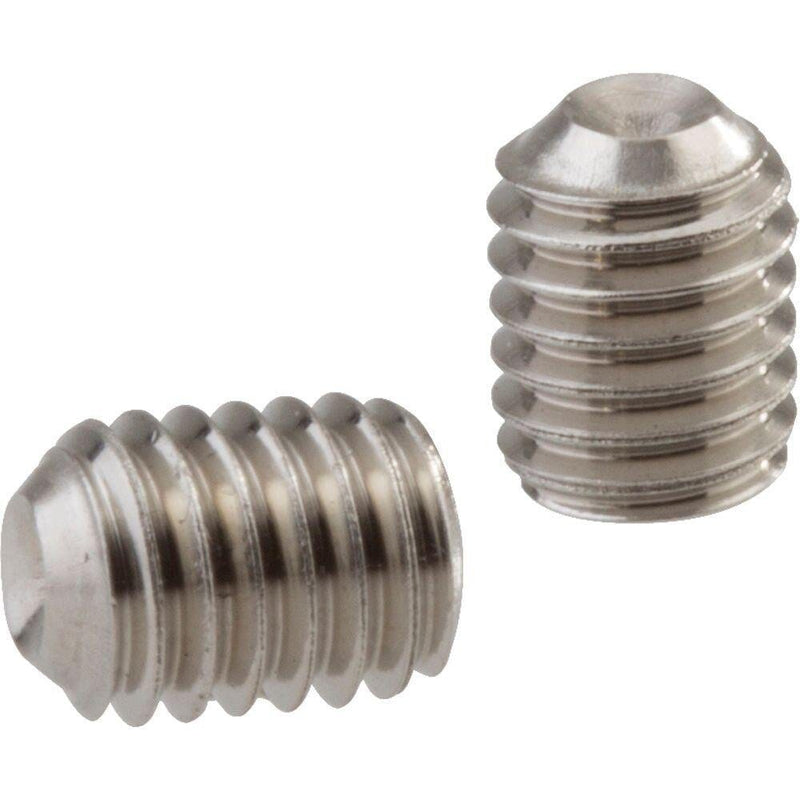

#0-80 x 1/4" Cup Point Socket Set Screws / 18-8 Stainless Steel / Passivated
- Stainless Steel
- 18-8
- Passivated
- 80 TPI · Fine
- ASME B18.3
$66.74
$0.667 / pc
Package of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#0-80 x 1/4" Cup Point Socket Set Screws / 18-8 Stainless Steel / Passivated
RoHS CompliantStainless
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$66.74
$0.667/pc
Cup Point Allen Set Screw (8 Socket) / A2 Stainless Steel / Passivated
Family: 102
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
#0-80 x 1/4" Cup Point Socket Set Screws / 18-8 Stainless Steel / Passivated
SKU: 102016-100
Technical Specifications
Thread Size
#0-80
Thread Series
UNF
Thread Pitch
80 TPI
Length
1/4"
Material
Stainless Steel
Grade
18-8
Finish
Passivated
Drive
Hex Socket (Allen)
Head Style
Headless (Set Screw)
Standard
ASME B18.3
Point Type
Cup
Tensile Strength
70000
Hardness
B70 - C32
Measurement System
Inch
SKU
102016-100
