Finished Hex Nuts: The Standard in Threaded Fastening

Finished hex nuts, also known as full hex nuts or standard hex nuts, are six-sided internally threaded fasteners designed to mate with bolts, screws, and threaded rod to create secure mechanical joints. As the most widely used nut type in industrial and commercial applications, finished hex nuts feature machined bearing surfaces and precise threading that deliver consistent clamping performance across countless assemblies. Their universal compatibility with hex wrenches and sockets, combined with reliable thread engagement, makes finished hex nuts the default choice for general-purpose fastening.

Anatomy of a Finished Hex Nut

The "finished" designation refers to the machined bearing surface and chamfered top and bottom that distinguish these nuts from heavy hex or machine screw nuts. The flat, washer-faced bottom surface sits perpendicular to the thread axis, providing even load distribution against the clamped material. Chamfers on both faces facilitate threading onto bolts and prevent edge damage during handling.

Thread specifications follow Unified National standards (UNC - Coarse, UNF - Fine) for inch-series or ISO metric standards (coarse and fine pitch). Thread class—typically 2B for inch-series—defines the tolerance relationship between nut and bolt threads, ensuring reliable assembly across manufacturers. The thread depth through the nut body provides adequate engagement for full bolt strength development.

Materials and Grades

Finished hex nuts are manufactured in material grades corresponding to bolt strength classifications:

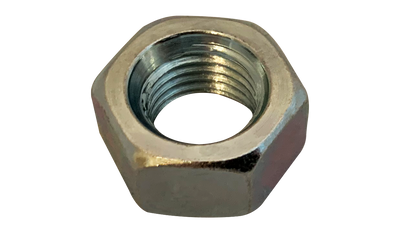

• Grade 2 (Low Carbon Steel): Standard grade for general-purpose applications. Suitable for use with Grade 2 and Grade 5 bolts in non-critical assemblies. Often zinc-plated for basic corrosion resistance.

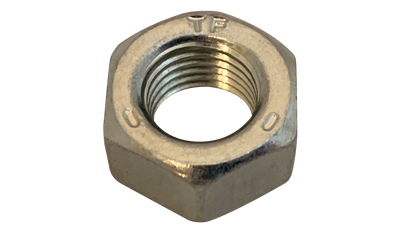

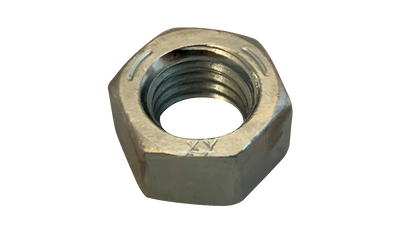

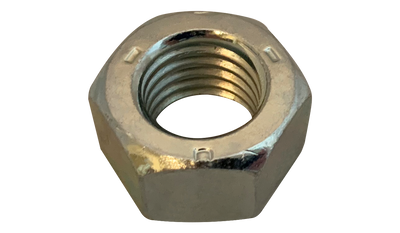

• Grade 5 (Medium Carbon Steel): Heat-treated for enhanced strength, matching Grade 5 bolt specifications. The minimum proof load exceeds that of Grade 2 nuts, making them suitable for higher-stress applications.

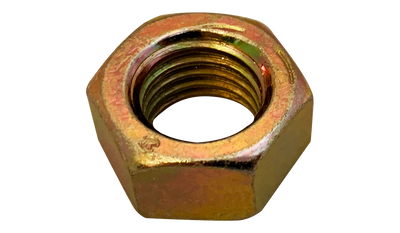

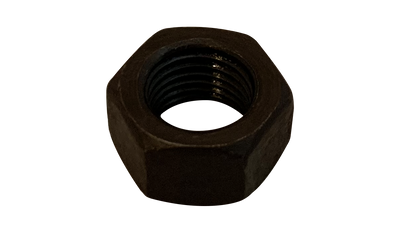

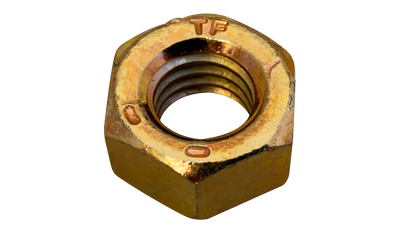

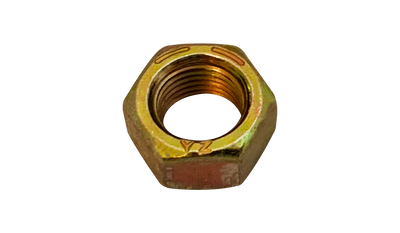

• Grade 8 (Alloy Steel): Maximum strength for the most demanding applications. Heat-treated to achieve proof loads matching Grade 8 bolt capabilities. Typically zinc-yellow or phosphate coated.

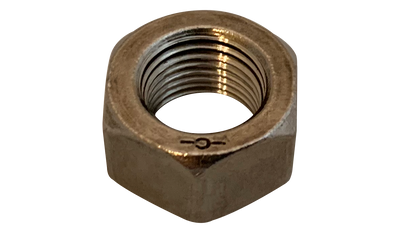

• Grade A (Stainless Steel): 18-8 (304) stainless steel for corrosion resistance. Non-magnetic or low magnetic response. Standard choice for outdoor, marine, food processing, and chemical environments.
• Grade C3 (316 Stainless Steel): Premium corrosion resistance with molybdenum for marine, chemical, and high-chloride environments.
• Silicon Bronze: Marine-grade corrosion resistance with aesthetic appeal for boat building and architectural applications.
• Brass: Corrosion-resistant, non-sparking, with excellent machinability. Common in plumbing, electrical, and decorative applications.

Specifications governing finished hex nuts include ASME B18.2.2 (inch-series dimensions), ASTM A563 (carbon and alloy steel grades), ASTM A194 (high-temperature service), and ASTM F594 (stainless steel grades).

Size Ranges and Dimensions

Finished hex nuts are available in sizes spanning virtually every common fastener diameter:

• Inch Series: #0 through 4" diameter, with common sizes including #6, #8, #10, 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 7/8", and 1"
• Metric Series: M1.6 through M100, with common sizes including M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, and M24

Width across flats (wrench size) follows established patterns: 7/16" for 1/4"-20, 9/16" for 5/16"-18, 9/16" for 3/8"-16, 3/4" for 1/2"-13, and so forth. Thread pitch options include UNC (coarse) for general assembly and UNF (fine) for precision applications, vibration resistance, and fine adjustment capability.

Applications Across Industries

Finished hex nuts serve as the universal mating component for hex bolts and threaded rod:

• Construction: Structural steel connections, anchor bolt assemblies, equipment mounting, handrails, and general building hardware.
• Manufacturing: Machine assembly, fixture building, jigs, and production equipment where reliable threaded connections are required.
• Automotive: Chassis components, suspension systems, body fastening, and aftermarket installations.
• Agriculture: Equipment assembly, implements, and field repairs where standard hex hardware enables universal tooling.
• Infrastructure: Bridges, highways, utilities, and public works requiring standardized, inspectable connections.
• Maintenance and Repair: The universal nature of hex nuts makes them essential for replacement hardware in virtually any mechanical system.

Finished Hex Nuts vs. Other Nut Types

Compared to heavy hex nuts, finished hex nuts have smaller width-across-flats dimensions and are thinner in height. Heavy hex nuts per ASTM A563-DH are specified for structural bolting applications (A325, A490 connections) where greater wrench clearance and bearing area are required. For non-structural applications, finished hex nuts provide adequate performance with material and cost savings.

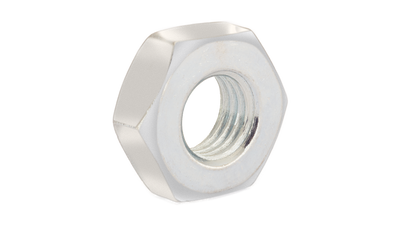

Compared to machine screw nuts (small pattern nuts), finished hex nuts offer larger bearing surfaces and greater thread engagement. Machine screw nuts are appropriate for light-duty fastening with smaller screws where finished hex nuts would be unnecessarily bulky.

Installation and Torque

Proper torque ensures adequate clamping force without yielding bolt or nut threads. Torque values vary by grade and diameter—a 1/2"-13 Grade 5 assembly might require 75 ft-lbs while a Grade 8 assembly of the same size could specify 105 ft-lbs. Always match nut grade to bolt grade; using lower-grade nuts with high-strength bolts prevents achieving full bolt strength and may cause thread stripping.

For vibration-prone applications, finished hex nuts may require supplemental locking: lock washers, thread-locking compounds, or replacement with prevailing torque lock nuts. The standard finished hex nut relies solely on thread friction for retention, which can be overcome by sustained vibration.

The Foundation of Fastening

Finished hex nuts represent over a century of standardization in mechanical fastening. Their compatibility with universal tooling, predictable thread engagement, and availability in every size and grade make them the foundation upon which modern mechanical assembly is built. When a reliable threaded connection is needed without specialized requirements, finished hex nuts deliver proven, economical performance.
