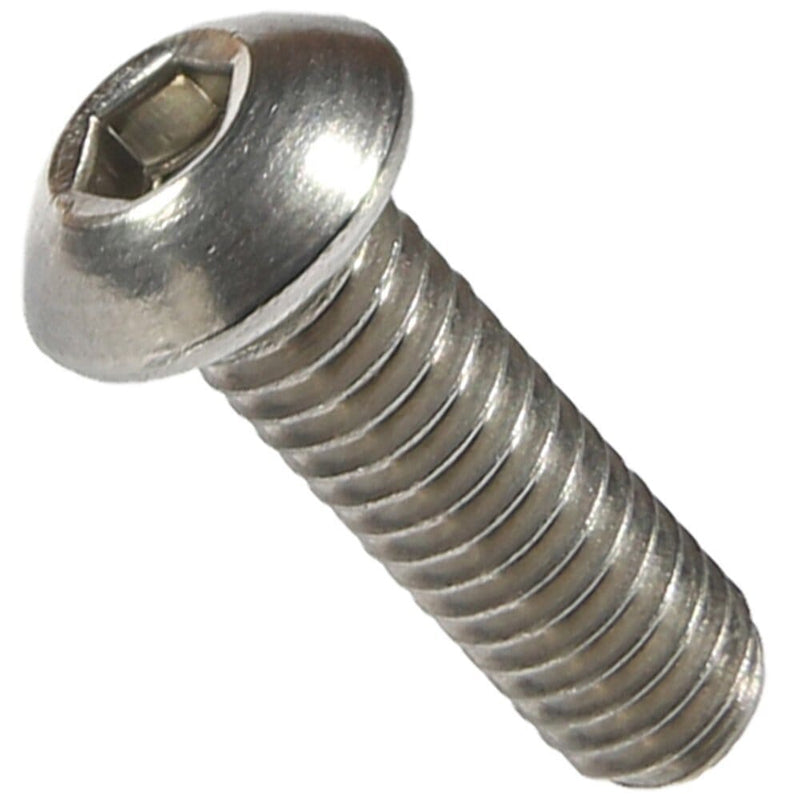

M5-0.80 x 20mm Button Head Cap Screws, Full Thread / Stainless Steel / 18-8 / Passivated / ASTM F593 Alloy Group 2 (18-8); ISO 7380-1
$790.00
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M5-0.80 x 20mm Button Head Cap Screws, Full Thread / Stainless Steel / 18-8 / Passivated / ASTM F593 Alloy Group 2 (18-8); ISO 7380-1
Specifications
| Material | Stainless Steel |
|---|---|
| Finish | Passivated |
| Grade | 18-8 |
| Size | M5-0.80 |
| Length | 20mm |
| Head Style | Button Head |
| Drive | Hex Socket (Allen) |
| Thread Pitch | 0.8mm |
| Thread Class | Coarse |
| Hardness | B70 - C32 |
| Tensile Strength | 70000 |
| Standard | ISO 7380-1 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS CompliantStainless
Frequently Asked Questions
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
.50 x 6mm Button Head Button Head Socket Cap Screw, Full Thread / 18-8 Stainless Steel / Passivated
Family: R87
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M5-0.80
Thread Type
Metric Coarse
Material
Stainless Steel
Grade
18-8
Head Style
Button Head
Thread Pitch
0.8mm
Tensile Strength
70000
Hardness
B70 - C32
SKU
R87520-5000
