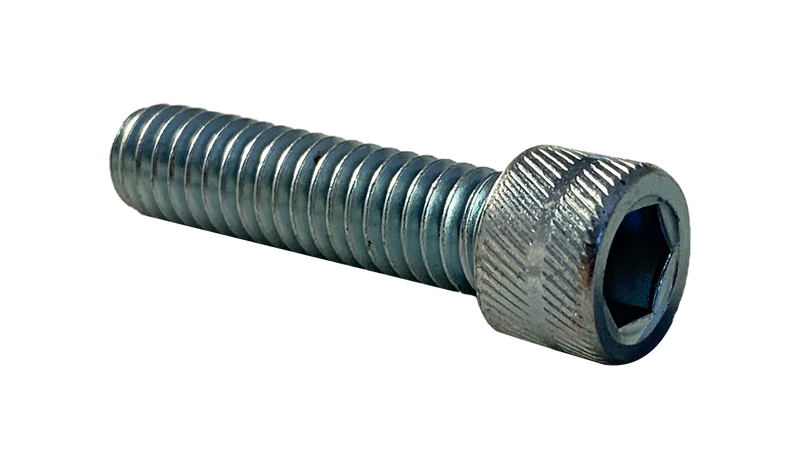

M5-0.8 x 110 mm Socket Head Cap Screws / Alloy Steel / Zinc
- Steel
- Class 8.8
- Zinc
- 0.8mm · Coarse
- DIN 912
$345.62
$3.46 / pc
Package of 100
Volume pricing: Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M5-0.8 x 110 mm Socket Head Cap Screws / Alloy Steel / Zinc
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What hex key size do I need for this socket head cap screw?
For this M5-0.80 Socket Head Cap Screw, use a 4 mm hex key (Allen wrench).
$345.62
$3.46/pc
-0.45 x 12mm Socket Cap Screw Class 8.8 Steel Zinc Full Thread (DIN 912)
Family: 718
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M5-0.80
Length
110mm
Thread Type
Coarse
Material
Steel
Grade
Class 8.8
Finish
Zinc
Drive
Hex Socket (Allen)
Head Style
Socket Head
Standard
DIN 912
Country of Origin
Import
Thread Pitch
0.8mm
Thread Class
Coarse
Tensile Strength
116000
Hardness
C22 - C32
RoHS Compliance
RoHS Compliant
Measurement System
Metric
Head Height
5 mm
Hex Key / Wrench Size
4 mm
SKU
718124-100
