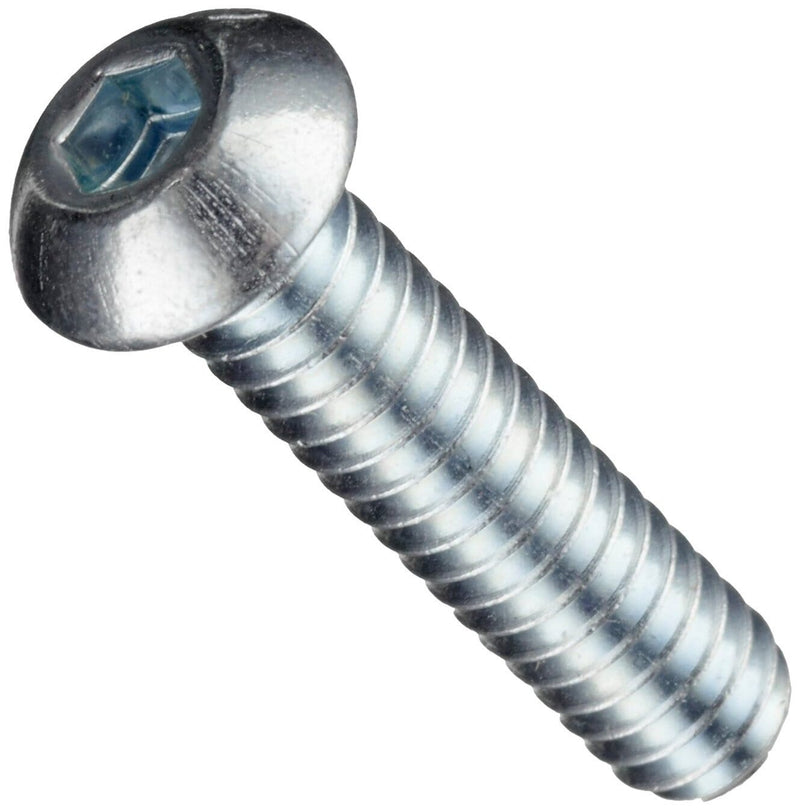

M4-0.70 x 12mm Button Head Cap Screws, Full Thread / Class 12.9 Steel / Zinc Bake / ISO 898-1 Class 12.9; DIN 912
$206.81
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M4-0.70 x 12mm Button Head Cap Screws, Full Thread / Class 12.9 Steel / Zinc Bake / ISO 898-1 Class 12.9; DIN 912
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Zinc |
| Grade | Class 12.9 |
| Size | M4-0.70 |
| Length | 12mm |
| Head Style | Button Head |
| Drive | Hex Socket (Allen) |
| Thread Pitch | 0.70mm |
| Thread Class | Coarse |
| Hardness | C39 - C44 |
| Tensile Strength | 174000 |
| Standard | ISO 7380 / DIN 9999 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
.50 x 5mm Button Head Socket Cap Screw Class 12.9 Steel Zinc Bake Full Thread
Family: 879
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M4-0.70
Thread Type
Metric Coarse
Material
Alloy Steel
Grade
Class 12.9
Head Style
Button Head
Thread Pitch
0.70mm
Tensile Strength
174000
Hardness
C39 - C44
SKU
879026-2500
