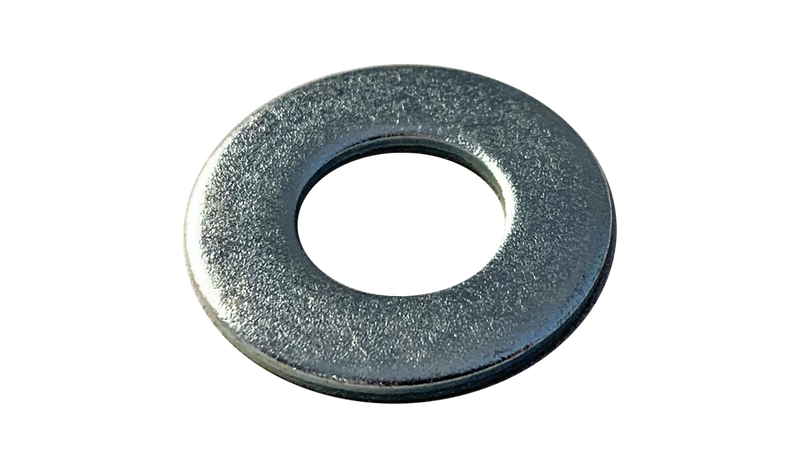

M24 Flat Washer (DIN 6916) / Grade A Steel / Plain / ASTM A307 Grade A; ASME B18.22.1
$256.73
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M24 Flat Washer (DIN 6916) / Grade A Steel / Plain / ASTM A307 Grade A; ASME B18.22.1
Specifications
| Material | Steel |
|---|---|
| Finish | Plain |
| Grade | A307 Grade A |
| Size | M24 |
| Inside Diameter | 25 mm |
| Outside Diameter | 44 mm |
| Thickness | 4 mm |
| Tensile Strength | 60000 |
| Standard | ASME B18.22.1 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
What is the difference between USS and SAE flat washers?
USS (Type B) flat washers have larger outside diameters and are thicker than SAE (Type A) washers of the same bolt size. USS is designed for softer materials and larger load distribution. SAE is used for harder materials and standard fastener installation.

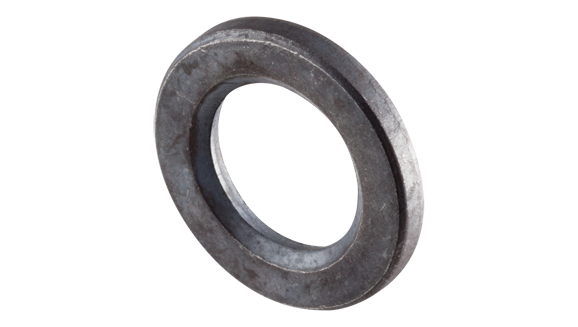

Flat Washer Grade A Steel (DIN 6916)
Family: VW7
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M24
Material
Steel
Grade
A307 Grade A
Thread Direction
Unthreaded
Outer Diameter
44 mm
Thickness
4 mm
Tensile Strength
60000
SKU
VW7240-300
