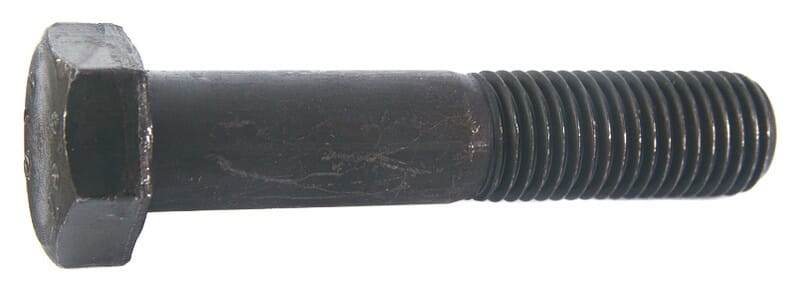

M22-2.5 x 120 mm Hex Cap Screws / Class 10.9 / Partial Thread
- Steel
- Class 10.9
- Plain
- 2.50mm · Coarse
- DIN 931/933
$587.29
$14.68 / pc
Bulk Box of 40
Volume pricing: Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M22-2.5 x 120 mm Hex Cap Screws / Class 10.9 / Partial Thread
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
$587.29
$14.68/pc
.00 x 25 MM Hex Bolt, Partial Thread / Class 10.9 Steel / Plain
Family: 461
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M22-2.50
Length
120mm
Thread Type
Coarse
Material
Steel
Grade
Class 10.9
Finish
Plain
Drive
External Hex
Head Style
Hex Head
Standard
DIN 931/933
Country of Origin
Import
Thread Pitch
2.50mm
Thread Class
Coarse
Tensile Strength
145000
Hardness
C32 - C39
RoHS Compliance
RoHS Compliant
Measurement System
Metric
Head Height
14 mm
Width Across Flats
32 mm
SKU
461398-40
