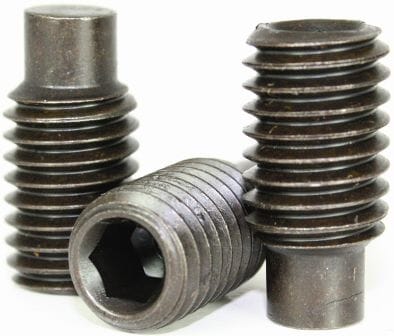

M20-2.50 x 55mm Full Dog Point Socket Set Screws / Alloy Steel / Black Oxide
- Steel
- Grade 45H
- Black Oxide
- 2.5mm · Coarse
- ASME B18.3, DIN 915
$1,791.82
$8.96 / pc
Bulk Box of 200
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M20-2.50 x 55mm Full Dog Point Socket Set Screws / Alloy Steel / Black Oxide
RoHS Compliant
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$1,791.82
$8.96/pc
.50 x 4mm Allen Set Screw 45H Alloy Steel (DIN 915)
Family: 833
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M20-2.50
Length
55mm
Thread Type
Coarse
Material
Steel
Grade
Grade 45H
Finish
Black Oxide
Drive
Hex Socket (Allen)
Head Style
Headless (Set Screw)
Standard
ASME B18.3, DIN 915
Thread Pitch
2.5mm
Thread Class
Coarse
Point Type
Full Dog
Hardness
C24 - C36
RoHS Compliance
RoHS Compliant
Measurement System
Metric
SKU
833350-200
