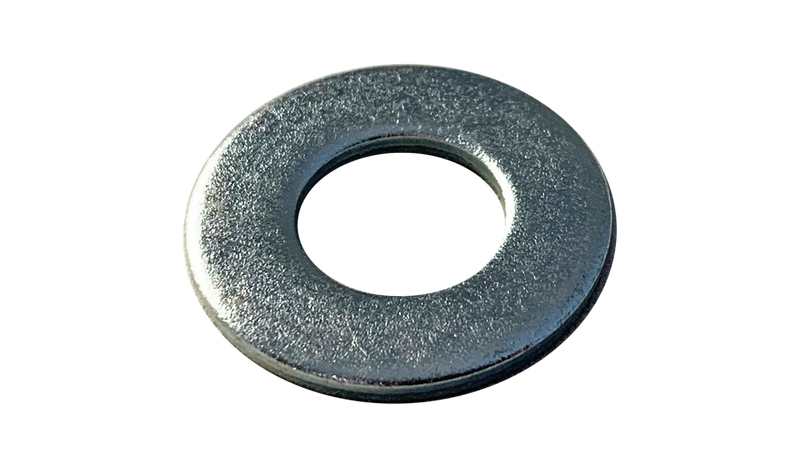

M14 Flat Washer (DIN 6916) / Grade A Steel / Plain
$216.90
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description

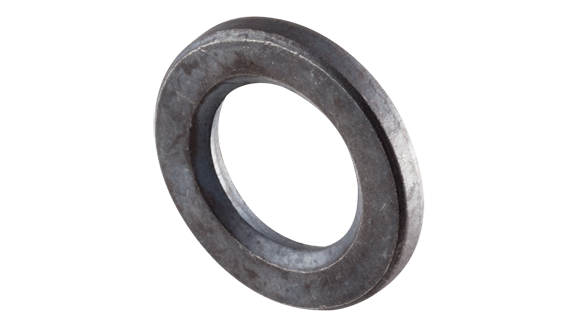

M14 Flat Washer (DIN 6916) / Grade A Steel / Plain
Specifications
| Material | Steel |
|---|---|
| Finish | Plain |
| Grade | A307 Grade A |
| Size | M14 |
| Inside Diameter | 15 mm |
| Outside Diameter | 28 mm |
| Thickness | 2.5 mm |
| Tensile Strength | 60000 |
| Standard | ASME B18.22.1, DIN 6916 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
What is the difference between USS and SAE flat washers?
USS (Type B) flat washers have larger outside diameters and are thicker than SAE (Type A) washers of the same bolt size. USS is designed for softer materials and larger load distribution. SAE is used for harder materials and standard fastener installation.
Flat Washer Grade A Steel (DIN 6916)
Family: VW7
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M14
Material
Steel
Grade
A307 Grade A
Thread Direction
Unthreaded
Washer Type
Fender
Outer Diameter
28 mm
Thickness
2.5 mm
Tensile Strength
60000
SKU
VW7140-600
