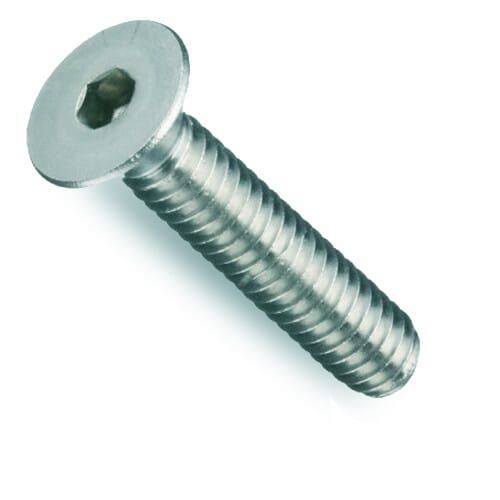

M12-1.75 x 40mm Flat Head Cap Screws, Full Thread / Class 12.9 Steel / Zinc CR+6
- Steel
- Class 12.9
- Zinc
- 1.75mm · Coarse
- DIN 7991 / ISO 10642, DIN 912
$48.72
$0.487 / pc
Package of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M12-1.75 x 40mm Flat Head Cap Screws, Full Thread / Class 12.9 Steel / Zinc CR+6
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
$48.72
$0.487/pc
.70 x 16mm Flat Head Socket Cap Screw, Full Thread (Cr+6) / Class 12.9 Steel / Zinc
Family: 843
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M12-1.75
Length
40mm
Thread Type
Coarse
Material
Steel
Grade
Class 12.9
Finish
Zinc
Drive
Hex Socket (Allen)
Head Style
Flat Head
Standard
DIN 7991 / ISO 10642, DIN 912
Thread Pitch
1.75mm
Thread Class
Coarse
Tensile Strength
174000
Hardness
C39 - C44
RoHS Compliance
Non-Compliant
Measurement System
Metric
SKU
843200-100
