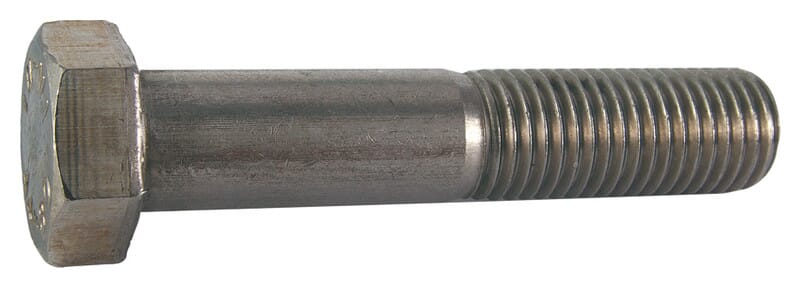

M12-1.75 x 170mm Hex Cap Screws, Partial Thread / Stainless Steel / A4-70 / Passivated / Import / ISO 3506-1 A4-70; DIN 931
$352.62
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M12-1.75 x 170mm Hex Cap Screws, Partial Thread / Stainless Steel / A4-70 / Passivated / Import / ISO 3506-1 A4-70; DIN 931
Specifications
| Material | Stainless Steel |
|---|---|
| Finish | Passivated |
| Grade | 316 |
| Size | M12-1.75 |
| Length | 170mm |
| Head Style | Hex Head |
| Drive | External Hex |
| Thread Pitch | 1.75mm |
| Thread Class | Coarse |
| Hardness | B80 - C32 |
| Tensile Strength | 101500 |
| Standard | DIN 931 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
| Head Height | 7.5 mm |
| Width Across Flats | 19 mm |
RoHS CompliantStainless
Frequently Asked Questions
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
.80 x 30mm Hex Cap Screw, Partial Thread (DIN 931) / A4 Stainless Steel / Passivated
Family: 797
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M12-1.75
Thread Type
Metric Coarse
Material
Stainless Steel
Grade
316
Head Style
Hex Head
Country of Origin
Import
Thread Pitch
1.75mm
Tensile Strength
101500
Hardness
B80 - C32
SKU
797363-60
