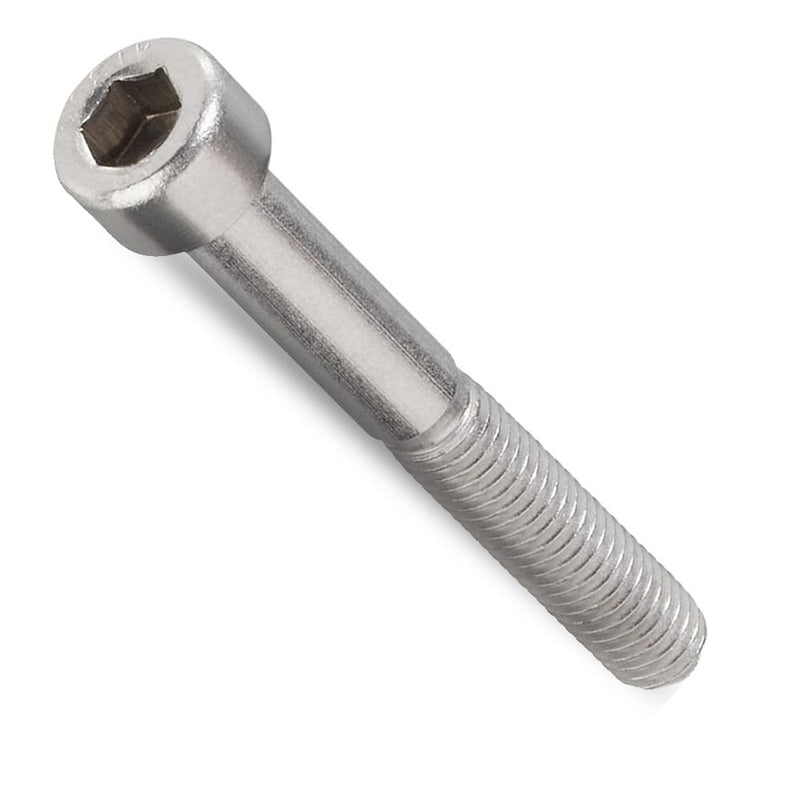

M10-1.50 x 75mm Socket Head Cap Screws, Partial Thread / Class 12.9 Steel / Zinc Bake
- Steel
- Class 12.9
- Zinc
- 1.50mm · Coarse
- DIN 912
$242.48
$4.85 / pc
Package of 50
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M10-1.50 x 75mm Socket Head Cap Screws, Partial Thread / Class 12.9 Steel / Zinc Bake
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What hex key size do I need for this socket head cap screw?
For this M10-1.50 Socket Head Cap Screw, use a 8 mm hex key (Allen wrench).
$242.48
$4.85/pc
.50 x 20mm Socket Cap Screw Class 12.9 Steel Zinc Bake Full Thread (DIN 912)
Family: 876
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M10-1.50
Length
75mm
Thread Type
Coarse
Material
Steel
Grade
Class 12.9
Finish
Zinc
Drive
Hex Socket (Allen)
Head Style
Socket Head
Standard
DIN 912
Thread Pitch
1.50mm
Thread Class
Coarse
Tensile Strength
174000
Hardness
C39 - C44
RoHS Compliance
RoHS Compliant
Measurement System
Metric
SKU
876170-50
