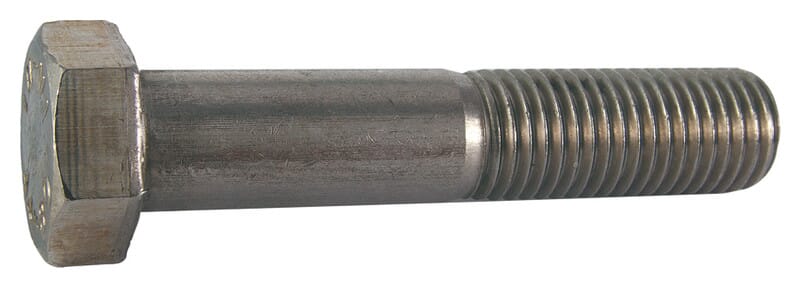

M10-1.50 x 130mm Hex Cap Screws, Partial Thread / A4 Stainless Steel / A4-70 / Passivated / DIN 931 / ISO 4017
- Stainless Steel
- A4-70
- Passivated
- 1.5mm · Coarse
- DIN 933 / ISO 4017, DIN 931
$1,285.15
$12.85 / pc
Bulk Box of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M10-1.50 x 130mm Hex Cap Screws, Partial Thread / A4 Stainless Steel / A4-70 / Passivated / DIN 931 / ISO 4017
RoHS CompliantStainless
Frequently Asked Questions
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$1,285.15
$12.85/pc
.80 x 30mm Hex Cap Screw, Partial Thread (DIN 931) / A4 Stainless Steel / Passivated
Family: 797
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M10-1.50
Length
130mm
Thread Type
Coarse
Material
Stainless Steel
Grade
A4-70
Finish
Passivated
Drive
External Hex
Head Style
Hex Head
Standard
DIN 933 / ISO 4017, DIN 931
Thread Pitch
1.5mm
Thread Class
Coarse
RoHS Compliance
RoHS Compliant
Measurement System
Metric
SKU
797080-100
