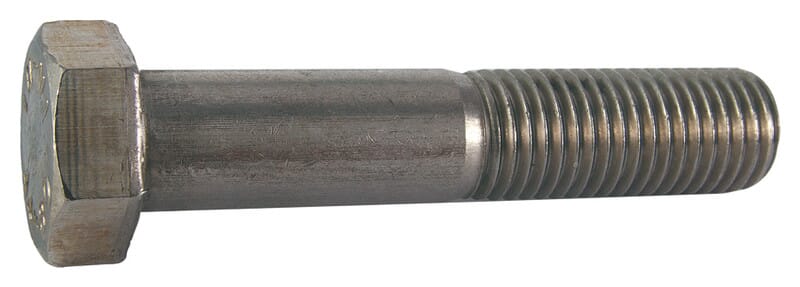

7/8"-9 x 3 1/2" Hex Cap Screws / Partial Thread / Grade B8 (304) / 304 Stainless Steel / Passivated
- Stainless Steel
- Grade B8
- Passivated
- 9 TPI · Coarse
- ASME B18.2.1
$656.81
$21.89 / pc
Bulk Box of 30
Volume pricing: Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
7/8"-9 x 3 1/2" Hex Cap Screws / Partial Thread / Grade B8 (304) / 304 Stainless Steel / Passivated
RoHS CompliantStainless
Frequently Asked Questions
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$656.81
$21.89/pc
Hex Cap Screw, Full Thread (304) / B8 Stainless Steel / Passivated
Family: V58
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
7/8"-9
Length
3 1/2"
Thread Type
Coarse
Material
Stainless Steel
Grade
Grade B8
Finish
Passivated
Drive
External Hex
Head Style
Hex Head
Standard
ASME B18.2.1
Thread Pitch
9 TPI
Thread Class
Coarse
Tensile Strength
75000
Hardness
C35
RoHS Compliance
RoHS Compliant
Measurement System
Inch
Head Height
37/64"
Width Across Flats
1 5/16"
SKU
V58592-30
