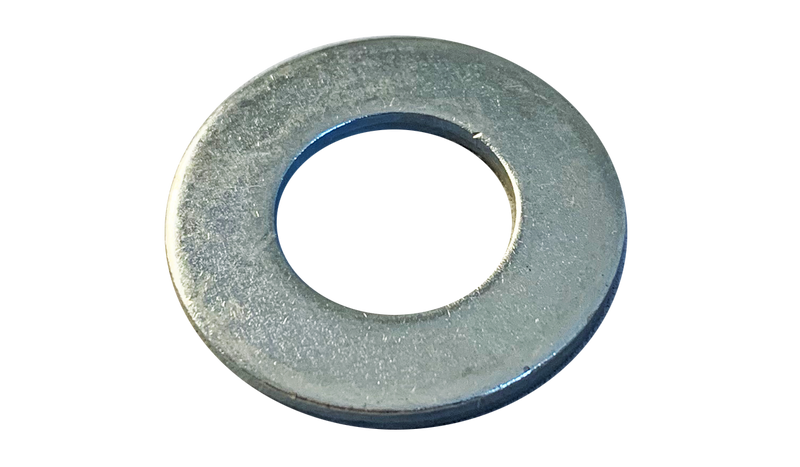

#6 Flat Washers / Type B Narrow Series / Low Carbon Steel / Zinc / Made in USA
- Steel
- Zinc
- ASME B18.22.1
$88.98
$0.089 / pc
Package of 1000
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#6 Flat Washers / Type B Narrow Series / Low Carbon Steel / Zinc / Made in USA
RoHS Compliant🇺🇸 Made in USA
Frequently Asked Questions
What is the difference between USS and SAE flat washers?
USS (Type B) flat washers have larger outside diameters and are thicker than SAE (Type A) washers of the same bolt size. USS is designed for softer materials and larger load distribution. SAE is used for harder materials and standard fastener installation.
$88.98
$0.089/pc
Flat Washers / Type B Narrow Series / Steel
Family: WFBN
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#6
Material
Steel
Finish
Zinc
Thread Direction
Unthreaded
Standard
ASME B18.22.1
Country of Origin
USA
Washer Type
Type B Narrow
Inside Diameter
0.156"
Outer Diameter
0.312"
Thickness
0.032"
RoHS Compliance
On Request
Measurement System
Inch
SKU
06WFBN-1000
