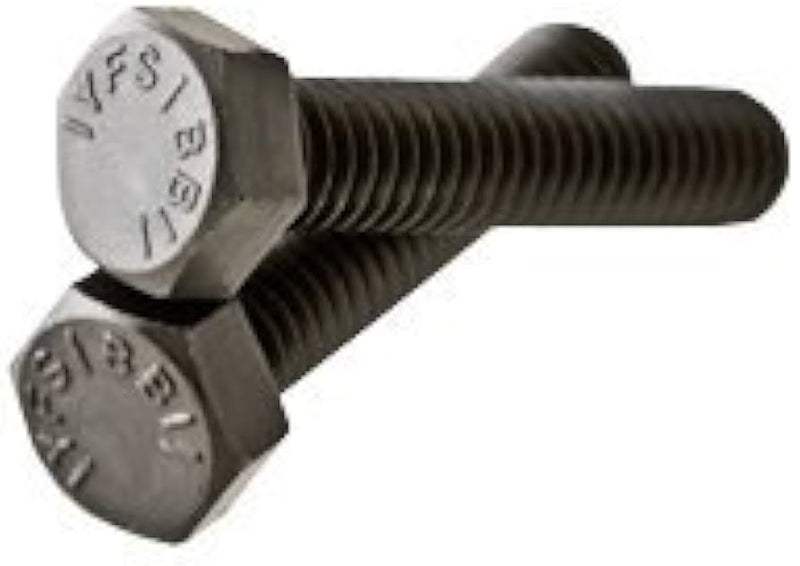

5/16"-18 x 3 1/2" Hex Tap Bolt, Full Thread / 5 Steel / Plain
- Steel
- Grade 5
- Plain
- 18 TPI · Coarse
- IFI-199
$37.34
$1.49 / pc
Package of 25
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
5/16"-18 x 3 1/2" Hex Tap Bolt, Full Thread / 5 Steel / Plain
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
$37.34
$1.49/pc
Hex Tap Bolt, Full Thread / 5 Steel / Plain
Family: 501
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
5/16"-18
Length
3 1/2"
Thread Type
Coarse
Material
Steel
Grade
Grade 5
Finish
Plain
Drive
External Hex
Head Style
Hex Head
Standard
IFI-199
Thread Pitch
18 TPI
Thread Class
Coarse
Tensile Strength
120000
Hardness
C25-C34
RoHS Compliance
RoHS Compliant
Measurement System
Inch
SKU
501102-25
