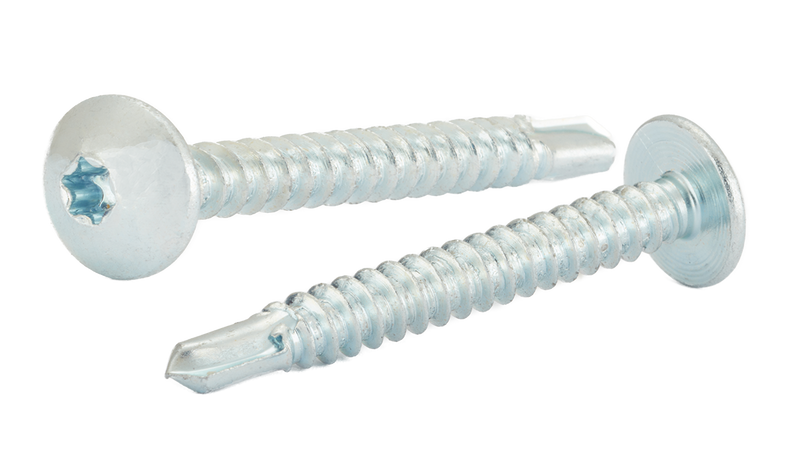

#14 x 2" Torx Truss Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Zinc
- Steel
- Zinc
- 1/4-14 · Coarse
- ASME B18.6.3
$71.76
$0.797 / pc
Package of 90
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#14 x 2" Torx Truss Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Zinc
RoHS Compliant
Frequently Asked Questions
How thick of metal can this self-drilling screw drill through?
Self-drilling screws are rated by drill point number: #2 point drills 0.018"–0.140" (24–9 ga), #3 point drills 0.060"–0.210" (16–3 ga), #4 point drills 0.110"–0.500", #5 point drills 0.250"–0.625". Match the point to your material thickness for proper drilling performance.
$71.76
$0.797/pc
Self-Drilling Screws / Six-Lobe (Torx®) / Truss Head
Family: KTT
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#14
Length
2"
Thread Type
Coarse
Material
Steel
Finish
Zinc
Drive
6-Lobe
Head Style
Truss Head
Standard
ASME B18.6.3
Country of Origin
Import
Thread Pitch
1/4-14
Head Diameter
0.546 - 0.573
RoHS Compliance
RoHS Compliant
Measurement System
Inch
SKU
1432KTT-90
