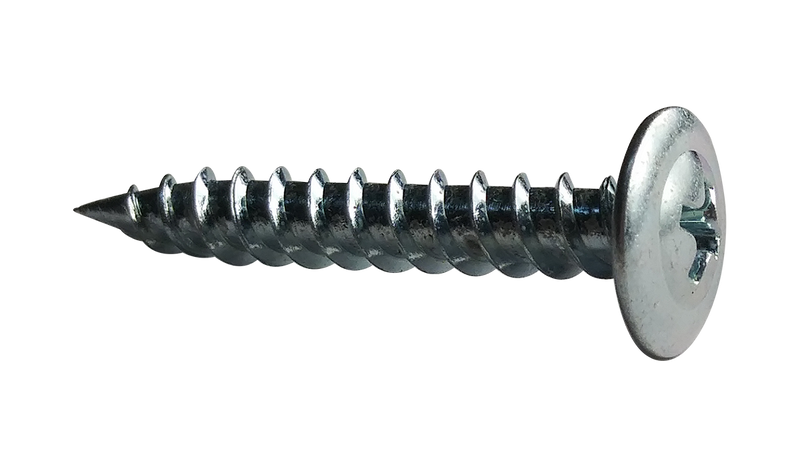

1/4"-14 x 2 1/2" Type AB Self-Tapping Screws / Phillips / Pan Head / Low Carbon Steel / Zinc
- Steel
- Zinc
- 14 TPI
- ASME B18.6.3
$148.80
$0.213 / pc
Bulk Box of 700
Volume pricing: Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
1/4"-14 x 2 1/2" Type AB Self-Tapping Screws / Phillips / Pan Head / Low Carbon Steel / Zinc
RoHS Compliant
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
$148.80
$0.213/pc
Flat Head Phillips Type AB Tapping Screw - Zinc
Family: 697
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1/4"-14
Length
2 1/2"
Material
Steel
Finish
Zinc
Drive
Phillips
Head Style
Pan Head
Standard
ASME B18.6.3
Thread Pitch
14 TPI
Point Type
Gimlet
RoHS Compliance
RoHS Compliant
Measurement System
Inch
SKU
697348-700
