Vibration is the silent killer of bolted joints. A perfectly torqued bolt can work loose over hours, days, or months — leading to equipment failure, safety incidents, and expensive repairs. The good news: with the right techniques, you can prevent vibration loosening reliably.

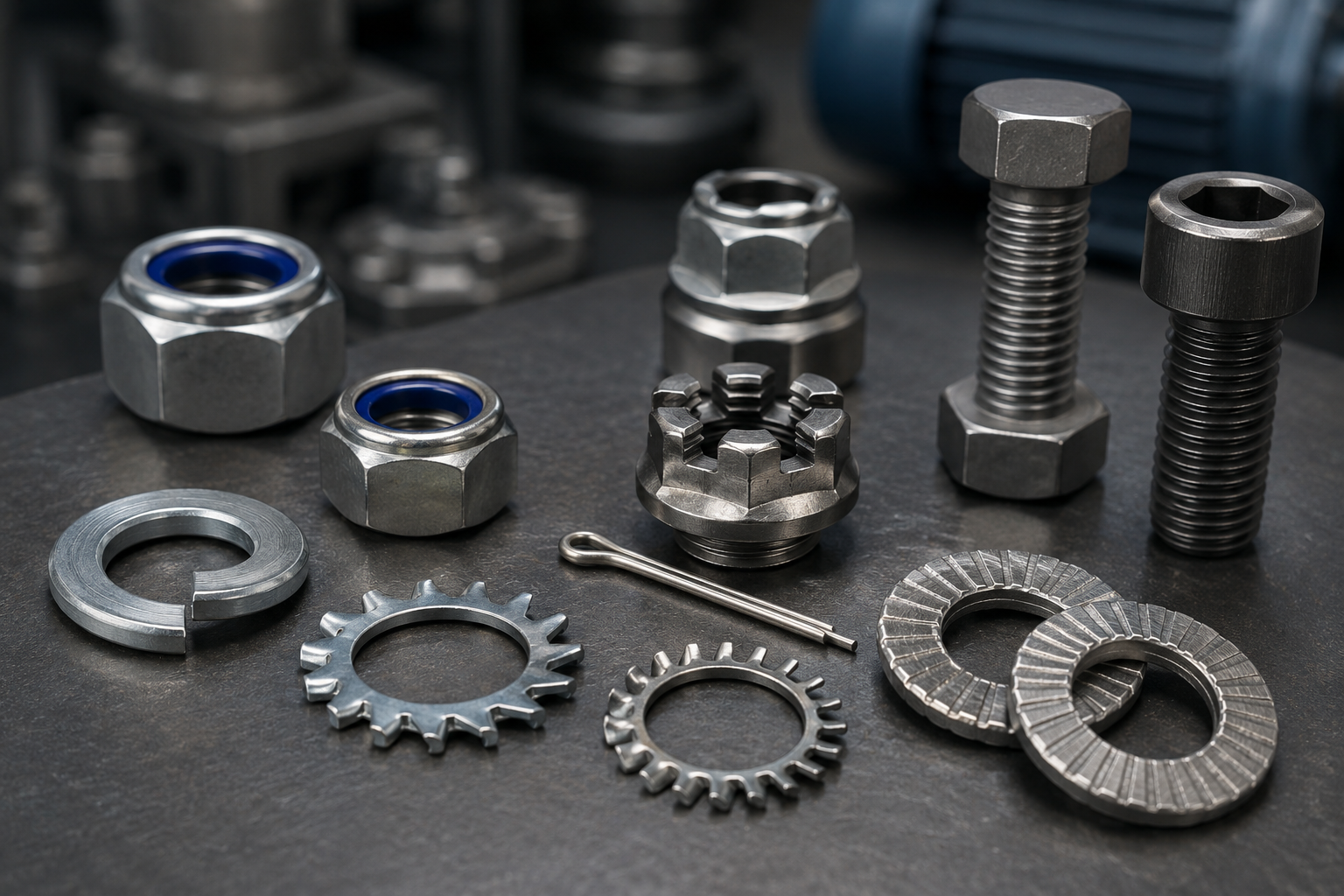

This guide reviews the main methods to prevent fastener loosening and helps you choose the right approach.
Why Bolts Loosen
Vibration loosening happens through transverse motion — side-to-side movement that causes the joint surfaces to slip. Each slip allows the bolt to rotate slightly in the loosening direction. Over time, the small rotations add up and the bolt completely loosens.
There are two main types of loosening:
Self-loosening: Caused by vibration without sufficient clamping force. The bolt simply rotates loose.
Embedment relaxation: Joint surfaces compress under load, reducing clamping force. Eventually clamping drops below the friction threshold and the bolt loosens.
The solution to both is maintaining adequate clamping force through the life of the joint.
Method 1: Split Lock Washers (Helical)
The traditional split lock washer has been used for over a century. The theory: as the nut tightens, the washer's spring action provides "live load" that maintains clamping force.
Modern engineering reality: Independent testing (notably by Dr. Karl Junker in the 1960s) showed split lock washers can actually reduce clamping force under vibration. The helix flattens under load, leaving you with a flat washer that doesn't lock.
Use split lock washers for: - Low-vibration applications - General purpose where cost matters more than reliability - Legacy systems where they're specified
Don't use for: Critical vibration applications. Use better methods.
Method 2: Tooth Lock Washers (External / Internal Star)
Tooth washers have hardened teeth that bite into both the bolt head and the mating surface, providing positive mechanical locking.
External tooth — Teeth on the outside, visible under the bolt head. Better for general use.
Internal tooth — Teeth on the inside, hidden by the bolt head. Better appearance but less locking force.
Star/serrated washers — More aggressive tooth pattern, even better locking.
Effectiveness: Better than split lock washers in vibration testing.
Best for: Electrical equipment (the teeth break through paint/anodizing for good electrical contact), light-to-moderate vibration applications.
Method 3: Nylon Insert Lock Nuts
A nylon ring inside the nut compresses around the bolt threads, providing prevailing torque (resistance to rotation) regardless of clamping force.
How it works: Even if the bolt loses clamping load due to vibration, the nylon insert prevents rotation. The nut stays in place.
Limitations: - Reusable only 5-7 times (nylon loses elasticity) - Temperature limit: -65°F to +250°F (nylon degrades above this) - Higher cost than standard nuts - Slightly larger than standard hex nuts
Best for: Automotive applications, machinery, anything with regular vibration in moderate temperatures.
Method 4: All-Metal Lock Nuts (Prevailing Torque)
All-metal lock nuts use deformed metal sections instead of nylon — typically a slightly oval top or distorted threads. They work at any temperature and can be reused more times than nylon insert nuts.
Types: - Top-lock (Stover) — Top section is squeezed to deform threads - K-Lock — Crown-shaped distortion at the top - Distorted thread — Threads themselves are slightly out of round
Effectiveness: Excellent. Used in automotive racing, military, aerospace where heat or repeated use rules out nylon.
Best for: High-temperature applications, repeated assembly/disassembly, critical safety applications.
Method 5: Thread Locking Adhesive (Loctite)
Liquid thread lockers (most famous brand: Loctite) fill the gaps between bolt and nut threads. When the assembly is tightened, the adhesive cures, locking the threads.
Loctite Blue (242/243): Medium strength, removable with hand tools. Reusable joint.
Loctite Red (271/272): High strength, requires heat or impact to remove. Permanent joint.
Loctite Green (290): Wicking grade — applied to already-assembled joints.
Effectiveness: Highly effective when applied correctly. Used by automotive manufacturers as standard.
Best for: Critical joints, anywhere positive thread locking is needed without space for a specialty nut.
Method 6: Castle Nuts and Cotter Pins
A castle nut has slots (castellations) cut in the top. A drilled bolt passes through the nut, and a cotter pin goes through both, mechanically preventing rotation.
Effectiveness: 100% mechanical locking. Cannot loosen unless the cotter pin breaks.
Best for: Vehicle suspension, axles, anywhere absolute lock is required.
Drawback: Requires drilled bolts (or cross-drilling on installation), specific slot alignment, and the cotter pin must be installed correctly.
Method 7: Wedge Locking Washers (Nord-Lock, Disc-Lock)
Two-piece washers with wedge ramps and serrations. The wedge angle is greater than the bolt's thread pitch, so any loosening rotation actually increases clamping force.
Effectiveness: The most effective non-adhesive locking method in independent testing.
Best for: Heavy machinery, mining equipment, wind turbines, anywhere extreme vibration occurs.
Drawback: Higher cost (~$0.50-$5 per washer), specific installation required (don't install backwards).
Method 8: Proper Engineering — The Best Method
The most overlooked solution: adequate clamping force in the first place.
A properly torqued, properly designed joint resists vibration loosening primarily through high friction at the joint surfaces. If the bolt is torqued to 75% of yield strength (typical for non-critical applications), the joint usually won't loosen — regardless of locking method.
Best practices for vibration-resistant joints:
- Use higher-grade bolts (Grade 8 or Class 10.9+) to allow higher preload
- Torque to specification — don't under-tighten
- Use lubricated threads for more consistent torque-to-tension
- Use through-hardened washers to prevent embedment
- Use the longest practical bolt — longer bolts have more elastic stretch, maintaining preload better
- Avoid soft joint materials — embedment relaxation kills clamping force
- Consider double-nutted assembly — two nuts (jam + standard) lock each other
Choosing the Right Method
| Application | Recommended Method |
|---|---|
| Indoor light-duty assembly | Split lock washer |
| Electrical equipment | Tooth lock washer |
| Automotive general | Nylon insert lock nut |
| Engine/exhaust (hot) | All-metal lock nut |
| Critical safety joint | Castle nut + cotter pin |
| Removable joint | Loctite Blue + lock washer |
| Permanent joint | Loctite Red + standard nut |
| Vehicle suspension | Castle nut + cotter pin or wedge washer |
| Heavy machinery | Wedge locking washer |
| Aerospace | Per spec — typically multiple methods |
Combining methods (e.g., Loctite + lock washer) provides defense in depth for the most critical applications.
