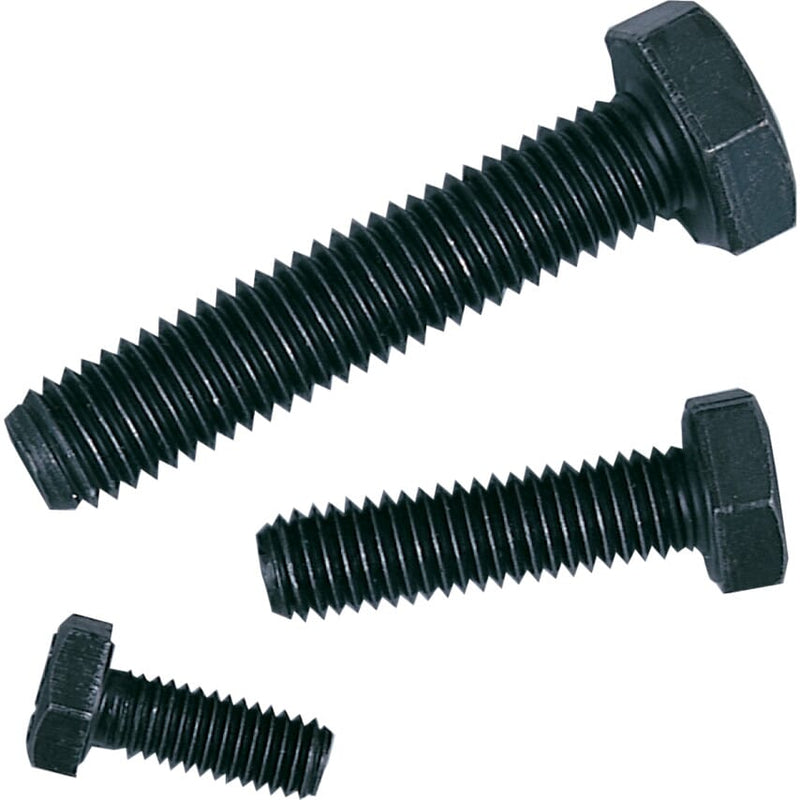

M6-1.00 x 45mm Hex Cap Screws, Full Thread / Class 10.9 Steel / Plain / Import / ISO 898-1 Class 10.9; DIN 933
$158.26
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M6-1.00 x 45mm Hex Cap Screws, Full Thread / Class 10.9 Steel / Plain / Import / ISO 898-1 Class 10.9; DIN 933
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Plain |
| Grade | Class 10.9 |
| Size | M6-1.00 |
| Length | 45mm |
| Head Style | Hex Head |
| Drive | External Hex |
| Thread Pitch | 1.0mm |
| Thread Class | Coarse |
| Hardness | C32 - C39 |
| Tensile Strength | 145000 |
| Standard | DIN 933 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
| Head Height | 4 mm |
| Width Across Flats | 10 mm |
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
.00 x 60 MM Hex Bolt Class 10.9 Steel Full Thread (DIN 933)
Family: 462
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M6-1.00
Thread Type
Metric Coarse
Material
Alloy Steel
Grade
Class 10.9
Head Style
Hex Head
Country of Origin
Import
Thread Pitch
1.0mm
Tensile Strength
145000
Hardness
C32 - C39
SKU
462022-800
