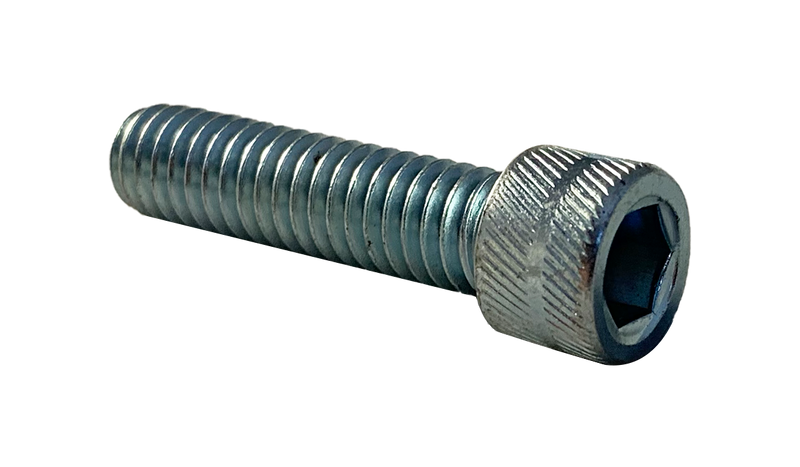

M42-4.5 x 170 mm Socket Head Cap Screws / Alloy Steel / Zinc
$9.99
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M42-4.5 x 170 mm Socket Head Cap Screws / Alloy Steel / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Grade | Class 8.8 |
| Size | M42-4.50 |
| Length | 170mm |
| Head Style | Socket Head |
| Drive | Hex Socket (Allen) |
| Thread Pitch | 4.5mm |
| Thread Class | Coarse |
| Hardness | C22 - C32 |
| Tensile Strength | 116000 |
| Standard | DIN 912 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What hex key size do I need for this socket head cap screw?
Hex socket size depends on the screw thread size. Common sizes: #6 uses 7/64", #8 uses 9/64", #10 uses 5/32", 1/4" uses 3/16", 5/16" uses 1/4", 3/8" uses 5/16". For metric: M3 uses 2.5mm, M5 uses 4mm, M6 uses 5mm, M8 uses 6mm, M10 uses 8mm.
-0.45 x 12mm Socket Cap Screw Class 8.8 Steel Zinc Full Thread (DIN 912)
Family: 718
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M42-4.50
Thread Type
Metric Coarse
Material
Steel
Grade
Class 8.8
Head Style
Socket Head
Country of Origin
Import
Thread Pitch
4.5mm
Tensile Strength
116000
Hardness
C22 - C32
SKU
718793-1
