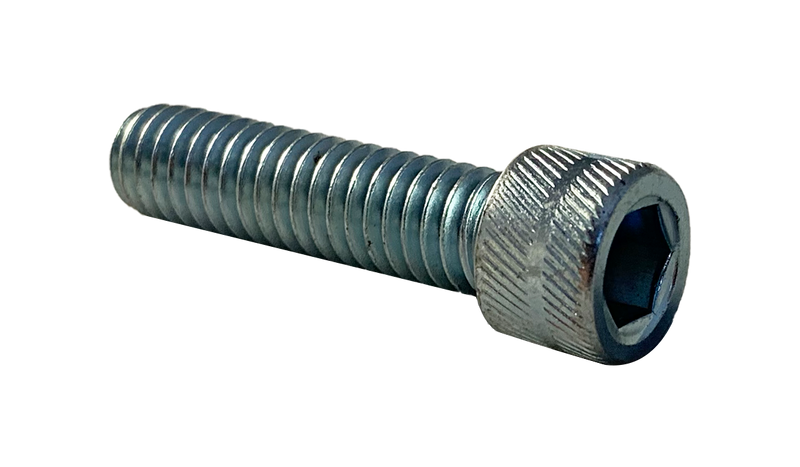

M27-3 x 170 mm Socket Head Cap Screws / Alloy Steel / Zinc
$9.99
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M27-3 x 170 mm Socket Head Cap Screws / Alloy Steel / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Grade | Class 8.8 |
| Size | M27-3.00 |
| Length | 170mm |
| Head Style | Socket Head |
| Drive | Hex Socket (Allen) |
| Thread Pitch | 3.0mm |
| Thread Class | Coarse |
| Hardness | C22 - C32 |
| Tensile Strength | 116000 |
| Standard | DIN 912 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
| Head Height | 27 mm |
| Hex Key / Wrench Size | 19 mm |
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What hex key size do I need for this socket head cap screw?
For this M27-3.00 Socket Head Cap Screw, use a 19 mm hex key (Allen wrench).
-0.45 x 12mm Socket Cap Screw Class 8.8 Steel Zinc Full Thread (DIN 912)
Family: 718
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M27-3.00
Thread Type
Metric Coarse
Material
Steel
Grade
Class 8.8
Head Style
Socket Head
Country of Origin
Import
Thread Pitch
3.0mm
Tensile Strength
116000
Hardness
C22 - C32
SKU
718666-5
