#8 x 1/2
SKU: 0808LTP188-5000 In Stock

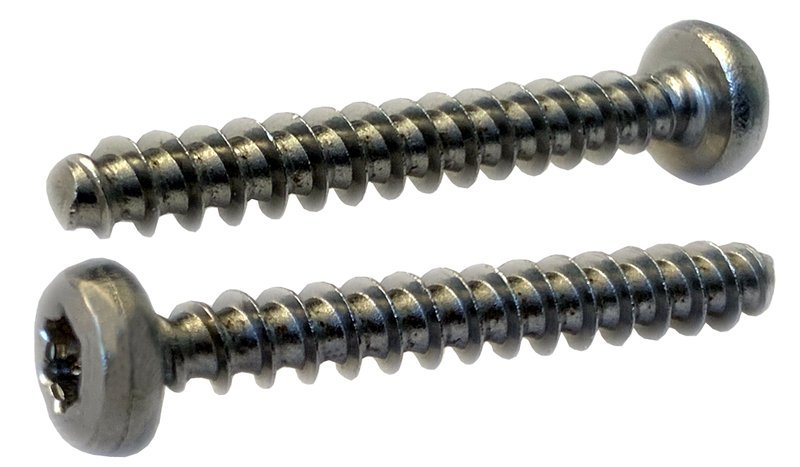

#8 x 1/2" Thread Forming Screws for Plastics (48-2) / Six-Lobe (Torx®) / Pan Head / 18-8 Stainless Steel

$700.80
Same-Day Shipping
Certified Specs
Volume Pricing

Product Description

8-16X1/2 6 Lobe Pan Plastite Alternative 48-2 Fully Threaded 18-8 S/S Passivated and Wax

Specifications

Material Stainless Steel
Finish Passivated
Grade 18-8
Size #8
Length 1/2"
Head Style Pan Head
Drive Torx/Six-Lobe
Thread Pitch 8-16
Head Diameter 0.306 - 0.322
Head Height 0.105 - 0.115
Measurement System Inch

Download Spec Sheet (PDF)

Thread Forming Screws for Plastics (48-2) / Six-Lobe (Torx®) / Pan Head

Family: LTP188

Select size and quantity, then add to cart

Loading filters...
0 items selected

Technical Specifications

Thread Size
#8
Thread Type
Coarse (UNC)
Material
Stainless Steel
Grade
18-8
Head Style
Pan Head
Thread Pitch
8-16
Head Diameter
0.306 - 0.322
SKU
0808LTP188-5000
