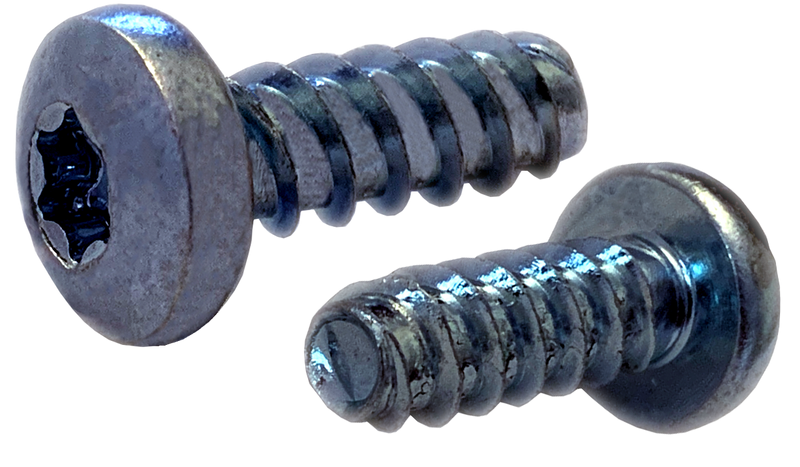

#6 x 5/8" Thread Forming Screws for Plastics (48-2) / Torx/Six-Lobe / Pan Head / Steel / Zinc
$515.60
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#6 x 5/8" Thread Forming Screws for Plastics (48-2) / Torx/Six-Lobe / Pan Head / Steel / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Size | #6 |
| Length | 5/8" |
| Head Style | Pan Head |
| Drive | 6-Lobe |
| Thread Pitch | 6-19 |
| Head Diameter | 0.256 - 0.270 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | On Request |
| Measurement System | Inch |
RoHS Compliant
Thread Forming Screws for Plastics (48-2) / Six-Lobe (Torx®) / Pan Head
Family: LTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#6
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Pan Head
Thread Pitch
6-19
Head Diameter
0.256 - 0.270
SKU
0610LTP-10000
