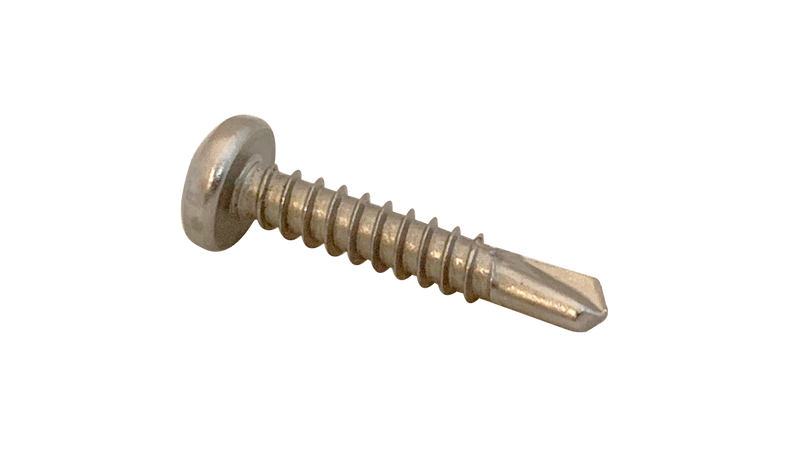

#6 x 1/2" Drill Point #2 Torx Pan Head Self-Drilling Screws, Full Thread / Stainless Steel / 410 / Passivated
$211.65
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#6 x 1/2" Drill Point #2 Torx Pan Head Self-Drilling Screws, Full Thread / Stainless Steel / 410 / Passivated
Specifications
| Material | Stainless Steel |
|---|---|
| Finish | Passivated |
| Grade | 410 |
| Size | #6 |
| Length | 1/2" |
| Head Style | Pan Head |
| Drive | 6-Lobe |
| Thread Pitch | 6-20 |
| Point Type | Drill Point #2 |
| Head Diameter | 0.256 - 0.270 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS CompliantStainless
Frequently Asked Questions
How thick of metal can this self-drilling screw drill through?
Self-drilling screws are rated by drill point number: #2 point drills 0.018"–0.140" (24–9 ga), #3 point drills 0.060"–0.210" (16–3 ga), #4 point drills 0.110"–0.500", #5 point drills 0.250"–0.625". Match the point to your material thickness for proper drilling performance.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
Self-Drilling Screws / Six-Lobe (Torx®) / Pan Head
Family: KTP410
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#6
Thread Type
Coarse (UNC)
Material
Stainless Steel
Grade
410
Head Style
Pan Head
Thread Pitch
6-20
Head Diameter
0.256 - 0.270
SKU
0608KTP410-2500
