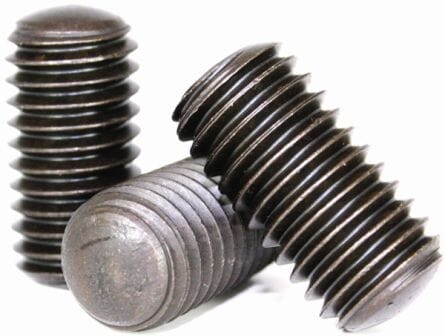

5/16"-18 x 5/8" Oval Point Socket Set Screws / Steel / Nylon Patch / Black Oxide
$610.37
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
5/16"-18 x 5/8" Oval Point Socket Set Screws / Steel / Nylon Patch / Black Oxide
Specifications
| Material | Steel |
|---|---|
| Finish | Black Oxide |
| Size | 5/16"-18 |
| Length | 5/8" |
| Head Style | Headless (Set Screw) |
| Drive | Hex Socket (Allen) |
| Thread Pitch | 18 TPI |
| Thread Class | Coarse |
| Point Type | Oval |
| Hardness | C45 - C53 |
| Standard | ASME B18.3 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
Oval Point Allen Set Screw / Nylon / Black Oxide
Family: 135
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
5/16"-18
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Headless (Set Screw)
Thread Pitch
18 TPI
Hardness
C45 - C53
SKU
135151-1000
