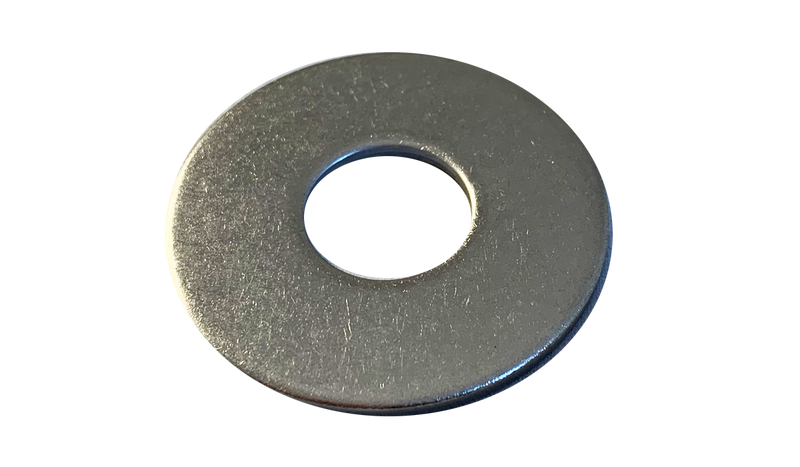

3/8"x1"x0.050 Flat Washer, SAE / 0.812" OD / 0.065" Thick / A2 Stainless Steel / Passivated / ISO 3506-1 A2-70; ASME B18.22.1
$208.00
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
3/8"x1"x0.050 Flat Washer, SAE / 0.812" OD / 0.065" Thick / A2 Stainless Steel / Passivated / ISO 3506-1 A2-70; ASME B18.22.1
Specifications
| Material | Stainless Steel |
|---|---|
| Finish | Passivated |
| Grade | 18-8 |
| Size | 3/8"x1"x0.050 |
| Length | 1" |
| Inside Diameter | 13/32" |
| Outside Diameter | 13/16" |
| Thickness | 0.065" |
| Hardness | B70 - C32 |
| Tensile Strength | 70000 |
| Standard | ASME B18.22.1 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS CompliantStainless
Frequently Asked Questions
What is the difference between USS and SAE flat washers?
USS (Type B) flat washers have larger outside diameters and are thicker than SAE (Type A) washers of the same bolt size. USS is designed for softer materials and larger load distribution. SAE is used for harder materials and standard fastener installation.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
Flat Washer, SAE / 0.922" OD / 0.065" Thick
Family: 391
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
3/8"x1"x0.050
Material
Stainless Steel
Grade
18-8
Thread Direction
Unthreaded
Outer Diameter
13/16"
Thickness
0.065"
Tensile Strength
70000
Hardness
B70 - C32
SKU
391160-2500
