3/8" NARROW Flat Washer / Brass / Plain / ASTM B16; ASME B18.22.1
$9.99
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description

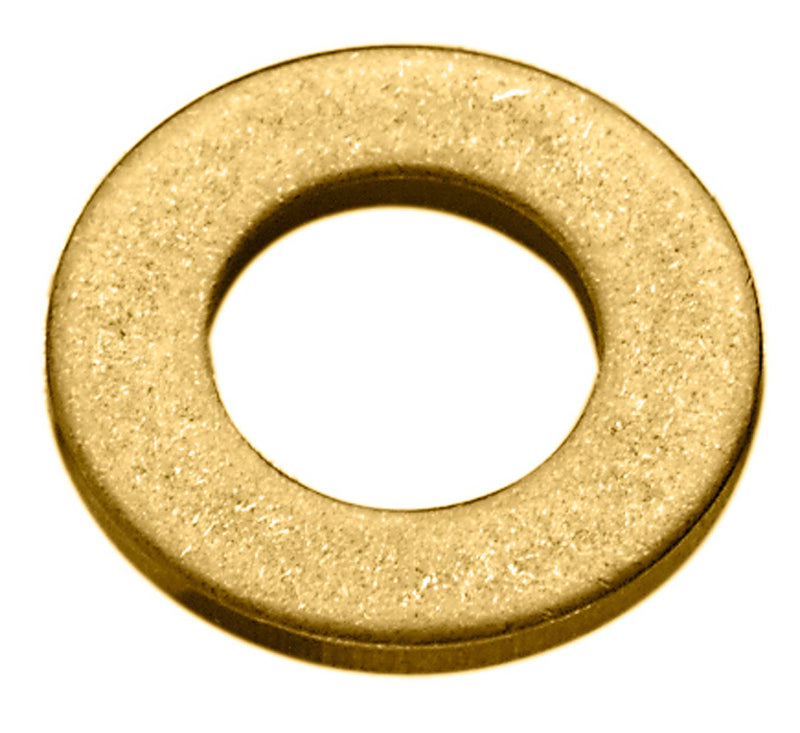

3/8" NARROW Flat Washer / Brass / Plain / ASTM B16; ASME B18.22.1
Specifications
| Material | Brass |
|---|---|
| Finish | Plain |
| Size | 3/8" NARROW |
| Inside Diameter | 7/16" |
| Outside Diameter | 1" |
| Thickness | 0.108" |
| Hardness | B35 - B80 |
| Tensile Strength | 50000 |
| Standard | ASME B18.22.1 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
What is the difference between USS and SAE flat washers?
USS (Type B) flat washers have larger outside diameters and are thicker than SAE (Type A) washers of the same bolt size. USS is designed for softer materials and larger load distribution. SAE is used for harder materials and standard fastener installation.
NARROW Flat Washer / Brass / Plain
Family: 112
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
3/8" NARROW
Material
Brass
Thread Direction
Unthreaded
Outer Diameter
1"
Thickness
0.108"
Tensile Strength
50000
Hardness
B35 - B80
SKU
112019-100
