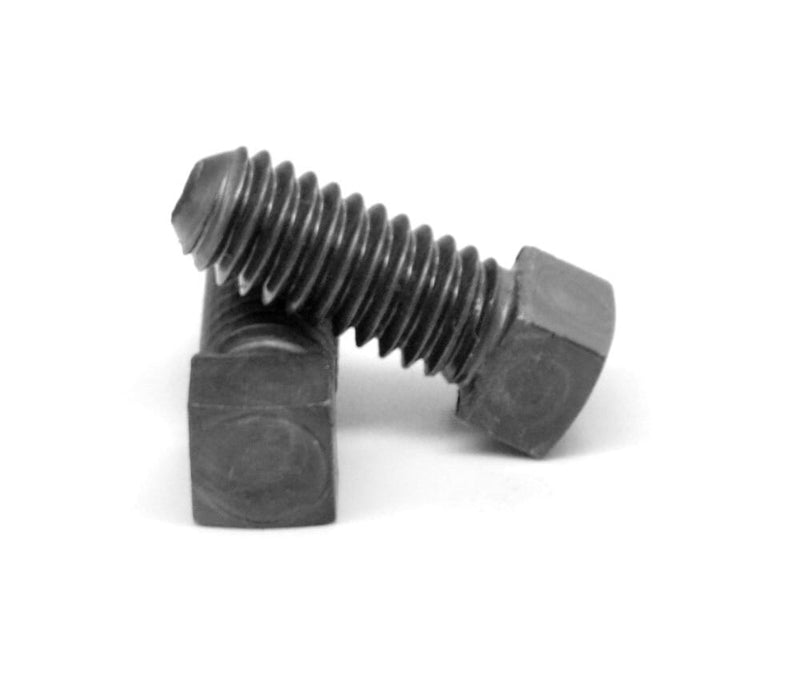

3/8"-24 x 2 1/4" Cup Point Square Head Set Screws / Case Hardened Steel / Plain
$9.99
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
3/8"-24 x 2 1/4" Cup Point Square Head Set Screws / Case Hardened Steel / Plain
Specifications
| Material | Steel |
|---|---|
| Finish | Plain |
| Size | 3/8"-24 |
| Length | 2 1/4" |
| Head Style | Square Head |
| Drive | Square |
| Thread Pitch | 24 TPI |
| Thread Class | Fine |
| Point Type | Cup |
| Hardness | C45 - C53 |
| Standard | ASME B18.3 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
SQUARE HEAD SET SCREWS CUP POINT COARSE CASE HARDENED PLAIN / Case Hardened Steel / Plain
Family: 411
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
3/8"-24
Thread Type
Fine (UNF)
Material
Steel
Head Style
Square Head
Country of Origin
Import
Thread Pitch
24 TPI
Hardness
C45 - C53
SKU
411025-300
