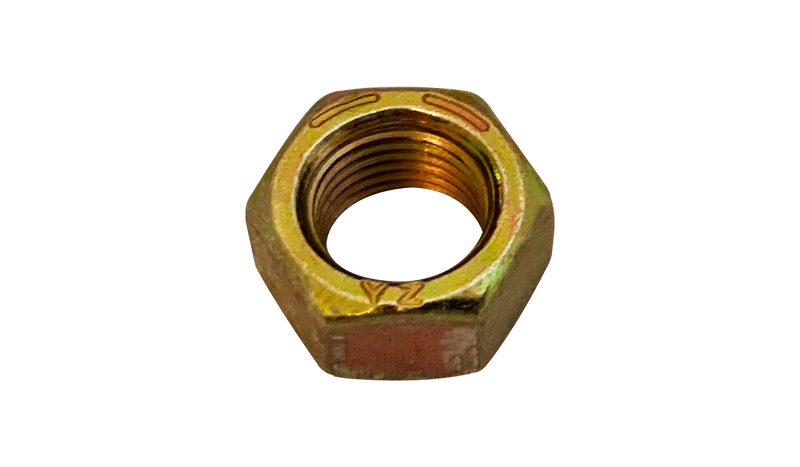

3/8"-24 Finished Hex Nuts / Grade 8 / Zinc Yellow
$201.82
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
3/8"-24 Finished Hex Nuts / Grade 8 / Zinc Yellow
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Zinc Yellow |
| Grade | Grade 8 |
| Size | 3/8"-24 |
| Thread Pitch | 24 TPI |
| Thread Class | Fine |
| Thickness | 21/64" |
| Hardness | C33-C39 |
| Tensile Strength | 150 ksi (1034 MPa) |
| Standard | ASME B18.2.2 |
| RoHS Compliance | On Request |
| Measurement System | Inch |
| Width Across Flats | 9/16" |
| Nut Height | 21/64" |
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
Finished Hex Nuts / Grade 8 / Zinc Yellow
Family: NF8F
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
3/8"-24
Thread Type
Fine (UNF)
Material
Alloy Steel
Grade
Grade 8
Thread Pitch
24 TPI
Thickness
21/64"
Tensile Strength
150 ksi (1034 MPa)
Hardness
C33-C39
SKU
38NF8-2000
