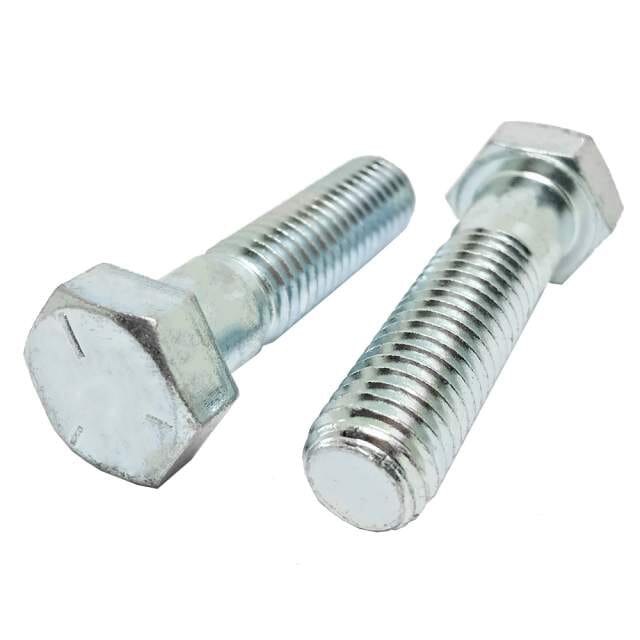

3/8"-16 x 6 1/2" Hex Cap Screws / Medium Carbon Steel / Grade 5 / Zinc / Made in USA / SAE J429 Grade 5; ASME B18.2.1
$874.11
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
3/8"-16 x 6 1/2" Hex Cap Screws / Medium Carbon Steel / Grade 5 / Zinc / Made in USA / SAE J429 Grade 5; ASME B18.2.1
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Grade | Grade 5 |
| Size | 3/8"-16 |
| Length | 6 1/2" |
| Head Style | Hex Head |
| Drive | External Hex |
| Thread Pitch | 16 TPI |
| Thread Class | Coarse |
| Hardness | B25 - C34 |
| Tensile Strength | 120000 |
| Standard | ASME B18.2.1 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
| Head Height | 15/64" |
| Width Across Flats | 9/16" |
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
Hex Cap Screw, Full Thread / Grade 5 Steel / Zinc
Family: 457
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
3/8"-16
Thread Type
Coarse (UNC)
Material
Steel
Grade
Grade 5
Head Style
Hex Head
Country of Origin
USA
Thread Pitch
16 TPI
Tensile Strength
120000
Hardness
B25 - C34
SKU
457713-175
Compliance & Certifications
DFARS Compliant
Defense Acquisition Regulations
Need documentation? Request compliance certificates
