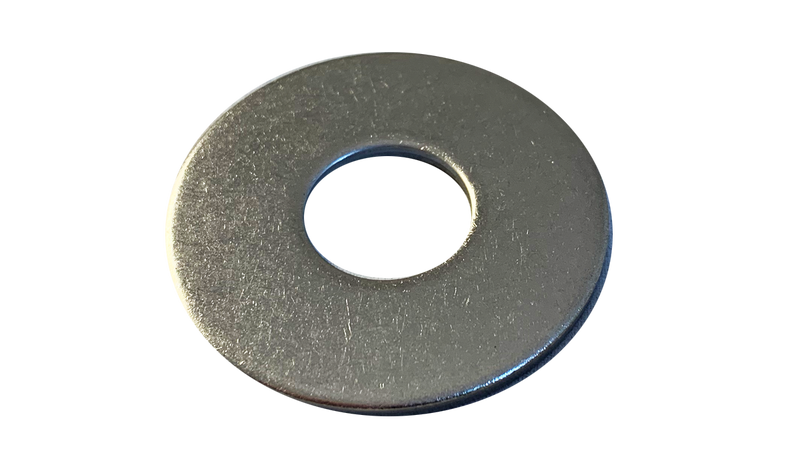

3/4"x1 7/8"x0.105 Flat Washer, SAE (Commercial) / 1.469" OD / 0.134" Thick / 316 Stainless Steel / Passivated / ASTM F593 Alloy Group 3 (316); ASME B18.22.1
$342.52
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
3/4"x1 7/8"x0.105 Flat Washer, SAE (Commercial) / 1.469" OD / 0.134" Thick / 316 Stainless Steel / Passivated / ASTM F593 Alloy Group 3 (316); ASME B18.22.1
Specifications
| Material | Stainless Steel |
|---|---|
| Finish | Passivated |
| Grade | 316 |
| Size | 3/4"x1 7/8"x0.105 |
| Length | 1 7/8" |
| Inside Diameter | 13/16" |
| Outside Diameter | 1 7/16" |
| Thickness | 0.134" |
| Hardness | B70 - C32 |
| Tensile Strength | 70000 |
| Standard | ASME B18.22.1 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS CompliantStainless
Frequently Asked Questions
What is the difference between USS and SAE flat washers?
USS (Type B) flat washers have larger outside diameters and are thicker than SAE (Type A) washers of the same bolt size. USS is designed for softer materials and larger load distribution. SAE is used for harder materials and standard fastener installation.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
Flat Washer, SAE (Commercial) / 0.500" OD / 0.049" Thick
Family: 398
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
3/4"x1 7/8"x0.105
Material
Stainless Steel
Grade
316
Thread Direction
Unthreaded
Outer Diameter
1 7/16"
Thickness
0.134"
Tensile Strength
70000
Hardness
B70 - C32
SKU
398360-300
