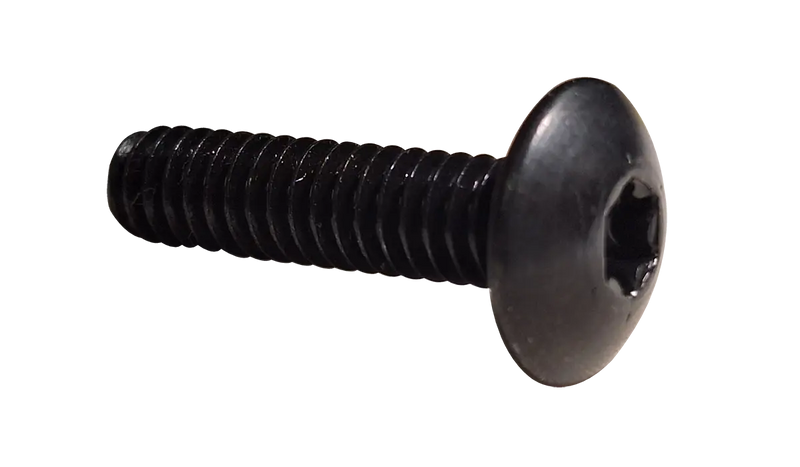

#10-24 x 3/4" Machine Screws / Six-Lobe (Torx®) / Truss Head / Steel / Black Oxide
$478.60
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
10-24X3/4 6 Lobe Truss Machine Screw Fully Threaded Black Oxide And Oil
Specifications
| Material | Steel |
| Finish | Black Oxide |
| Size | 10-24 |
| Length | 3/4" |
| Head Style | Truss Head |
| Drive | Torx/Six-Lobe |
| Thread Pitch | 24 TPI |
| Head Diameter | 0.425 - 0.448 |
| Head Height | 0.103 - 0.118 |
| Measurement System | Inch |
Machine Screws / Six-Lobe (Torx®) / Truss Head
Family: MTTB
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#10-24
Thread Type
Coarse (UNC)
Material
Steel
Grade
Low Carbon
Head Style
Truss Head
Thread Pitch
24 TPI
Head Diameter
0.425 - 0.448
SKU
1012MTTB-5000
