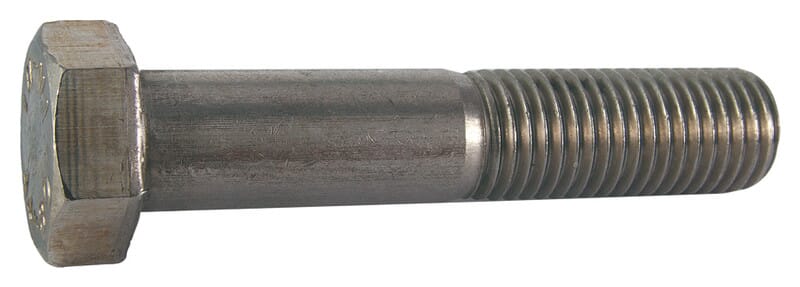

1"-8 x 2 3/4" Hex Cap Screws
$552.91
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
1"-8 x 2 3/4" Hex Cap Screws
Specifications
| Finish | Passivated |
|---|---|
| Size | 1"-8 |
| Length | 2 3/4" |
| Head Style | Hex Head |
| Drive | External Hex |
| Thread Pitch | 8 TPI |
| Thread Class | Coarse |
| Hardness | C35 |
| Tensile Strength | 75000 |
| Standard | ASME B18.2.1 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
| Head Height | 43/64" |
| Width Across Flats | 1 1/2" |
RoHS CompliantStainless
Frequently Asked Questions
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
Hex Cap Screw, Full Thread (304) / B8 Stainless Steel / Passivated
Family: V58
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1"-8
Thread Type
Coarse (Standard)
Head Style
Hex Head
Thread Pitch
8 TPI
Tensile Strength
75000
Hardness
C35
SKU
V58666-30
