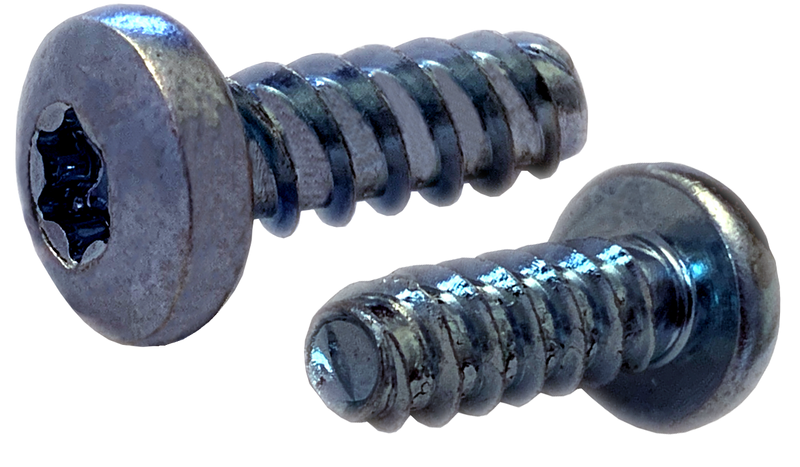

1/4" x 1" Thread Forming Screws for Plastics (48-2) / Torx/Six-Lobe / Pan Head / Steel / Zinc
$435.95
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
1/4" x 1" Thread Forming Screws for Plastics (48-2) / Torx/Six-Lobe / Pan Head / Steel / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Size | 1/4" |
| Length | 1" |
| Head Style | Pan Head |
| Drive | 6-Lobe |
| Thread Pitch | 1/4-10 |
| Head Diameter | 0.473 - 0.492 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | On Request |
| Measurement System | Inch |
RoHS Compliant
Thread Forming Screws for Plastics (48-2) / Six-Lobe (Torx®) / Pan Head
Family: LTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1/4"
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Pan Head
Thread Pitch
1/4-10
Head Diameter
0.473 - 0.492
SKU
1416LTP-2500
