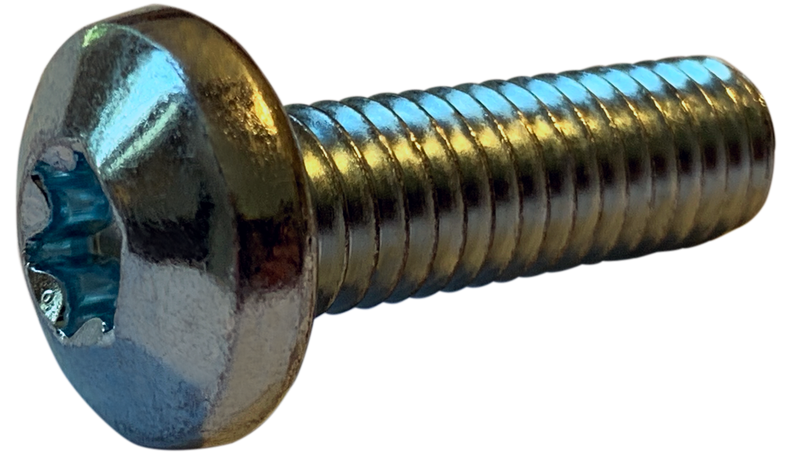

1/4"-20 x 2 1/2" Machine Screws / Torx/Six-Lobe / Pan Head / Steel / Zinc
$136.00
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
1/4"-20 x 2 1/2" Machine Screws / Torx/Six-Lobe / Pan Head / Steel / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Size | 1/4"-20 |
| Length | 2 1/2" |
| Head Style | Pan Head |
| Drive | 6-Lobe |
| Thread Pitch | 20 TPI |
| Thread Class | Coarse |
| Head Diameter | 0.473 - 0.492 |
| Standard | ASME B18.6.3 |
| RoHS Compliance | On Request |
| Measurement System | Inch |
RoHS Compliant
Machine Screws / Six-Lobe (Torx®) / Pan Head
Family: MTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1/4"-20
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Pan Head
Thread Pitch
20 TPI
Head Diameter
0.473 - 0.492
SKU
1440MTP-800
