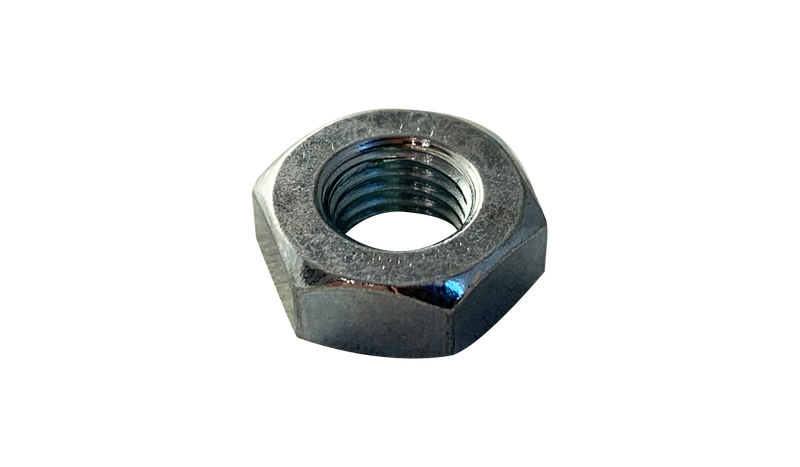

1/4"-20 Hex Nut / Grade 5 Steel / Zinc / SAE J429 Grade 5; ASME B18.2.2 / Made in USA
$1,598.00
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
1/4"-20 Hex Nut / Grade 5 Steel / Zinc / SAE J429 Grade 5; ASME B18.2.2 / Made in USA
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Grade | Grade 5 |
| Size | 1/4"-20 |
| Thread Pitch | 20 TPI |
| Thread Class | Coarse |
| Hardness | B25 - C34 |
| Tensile Strength | 120000 |
| Standard | ASME B18.2.2 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
| Width Across Flats | 7/16" |
| Nut Height | 7/32" |
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
Hex Nut / Grade 5 Steel / Zinc
Family: 598
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1/4"-20
Thread Type
Coarse (UNC)
Material
Steel
Grade
Grade 5
Country of Origin
USA
Thread Pitch
20 TPI
Tensile Strength
120000
Hardness
B25 - C34
SKU
598058-8000
Compliance & Certifications
DFARS Compliant
Defense Acquisition Regulations
Need documentation? Request compliance certificates
