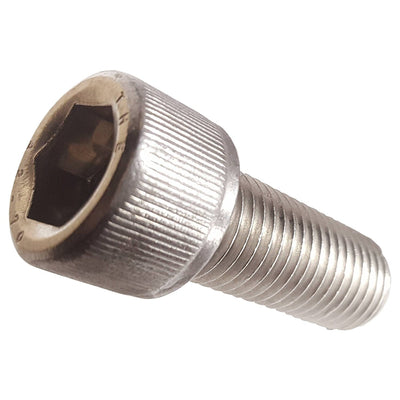

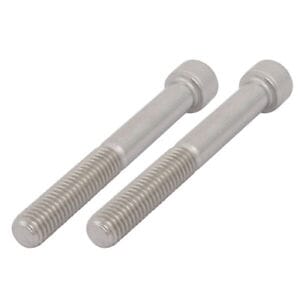

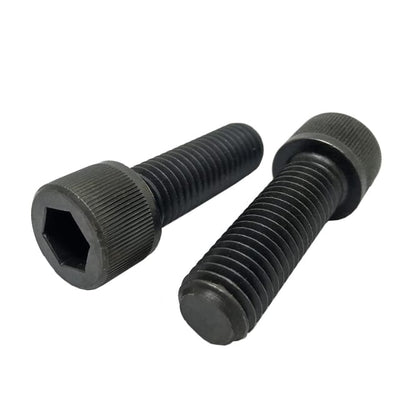

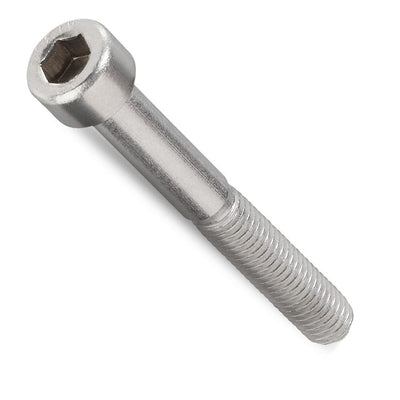

5/16"-24 Socket Head Cap Screws

5/16-24 Socket Head Cap Screws in all available lengths, grades, materials, and finishes. This collection covers every 5/16-24 option in stock — use the filters to narrow by length, grade, material, and finish.

5/16-24 Thread Specifications

• Nominal diameter: 0.3125"
• Threads per inch: 24
• Tap drill (75% thread): I (0.272")
• Clearance hole (close fit): 21/64" (0.328")
• Clearance hole (free fit): 11/32" (0.344")

To thread a 5/16-24 hole, drill with a I (0.272") tap drill for a standard 75% thread. For a clearance hole that the 5/16-24 screw passes through, use 21/64" (0.328") for a close fit or 11/32" (0.344") for a free fit. Pair with a matching 5/16-24 nut or tapped hole.
