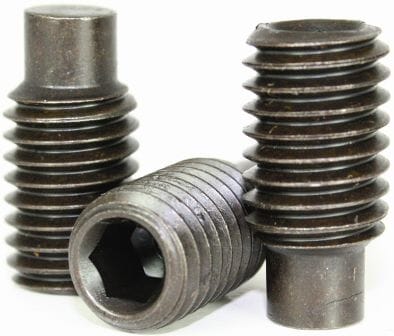

M8-1.25 x 60mm Dog Point Socket Set Screws / 45H Alloy Steel / Plain
- Steel
- Grade 45H
- Plain
- 1.25mm · Coarse
- ASME B18.3, DIN 915
$1,428.42
$1.43 / pc
Bulk Box of 1000
Volume pricing: Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M8-1.25 x 60mm Dog Point Socket Set Screws / 45H Alloy Steel / Plain
RoHS Compliant
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
$1,428.42
$1.43/pc
.50 x 4mm Allen Set Screw 45H Alloy Steel (DIN 915)
Family: 833
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M8-1.25
Length
60mm
Thread Type
Coarse
Material
Steel
Grade
Grade 45H
Finish
Plain
Drive
Hex Socket (Allen)
Head Style
Headless (Set Screw)
Standard
ASME B18.3, DIN 915
Thread Pitch
1.25mm
Thread Class
Coarse
Point Type
Full Dog
Hardness
C24 - C36
RoHS Compliance
RoHS Compliant
Measurement System
Metric
SKU
833126-1000
