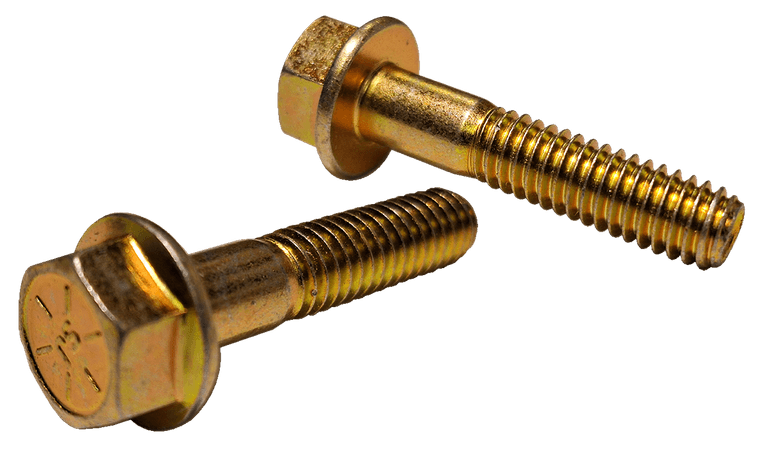

M8-1.25 x 20 MM Serrated Hex Flange Bolt, Full Thread (Non) / Class 8.8 Steel / Zinc Yellow Bake
- Steel
- Class 8.8
- Zinc Yellow
- 1.25mm · Coarse
- DIN 6921
$126.59
$1.27 / pc
Package of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M8-1.25 x 20 MM Serrated Hex Flange Bolt, Full Thread (Non) / Class 8.8 Steel / Zinc Yellow Bake
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
$126.59
$1.27/pc
.00 x 14 MM Serrated Hex Flange Bolt, Full Thread (Non) / Class 8.8 Steel / Zinc Yellow Bake
Family: P82
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M8-1.25
Length
20mm
Thread Type
Coarse
Material
Steel
Grade
Class 8.8
Finish
Zinc Yellow
Drive
External Hex
Head Style
Hex Flange Head
Standard
DIN 6921
Thread Pitch
1.25mm
Thread Class
Coarse
Point Type
Chamfered
Tensile Strength
116000
Hardness
C22 - C32
RoHS Compliance
Non-Compliant
Measurement System
Metric
SKU
P82064-100
