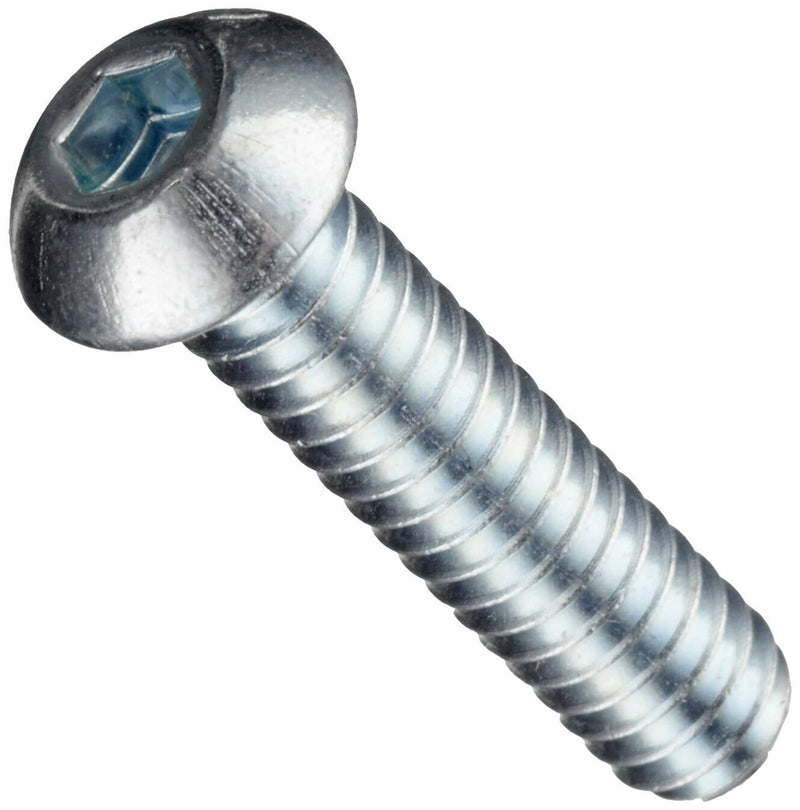

M8-1.25 x 15mm Button Head Cap Screws, Full Thread / Class 12.9 Steel / Zinc Bake
- Steel
- Class 12.9
- Zinc
- 1.25mm · Coarse
- ISO 7380 / DIN 9999, DIN 912, ISO 4762
$124.07
$1.24 / pc
Package of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M8-1.25 x 15mm Button Head Cap Screws, Full Thread / Class 12.9 Steel / Zinc Bake
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
$124.07
$1.24/pc
.50 x 5mm Button Head Socket Cap Screw Class 12.9 Steel Zinc Bake Full Thread
Family: 879
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M8-1.25
Length
15mm
Thread Type
Coarse
Material
Steel
Grade
Class 12.9
Finish
Zinc
Drive
Hex Socket (Allen)
Head Style
Button Head
Standard
ISO 7380 / DIN 9999, DIN 912, ISO 4762
Thread Pitch
1.25mm
Thread Class
Coarse
Tensile Strength
174000
Hardness
C39 - C44
RoHS Compliance
RoHS Compliant
Measurement System
Metric
SKU
879109-100
