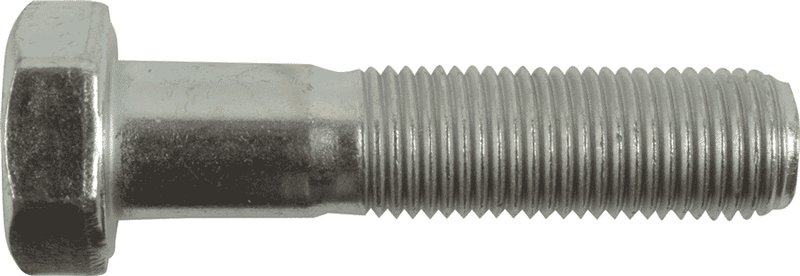

M8-1.00 x 55mm Hex Cap Screws, Partial Thread / Class 8.8 Steel / Zinc
- Steel
- Class 8.8
- Zinc
- 1.00mm · Fine
- DIN 931/933, DIN 960
$164.98
$1.65 / pc
Package of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M8-1.00 x 55mm Hex Cap Screws, Partial Thread / Class 8.8 Steel / Zinc
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
$164.98
$1.65/pc
.80 x 12 MM Hex Cap Screw, Full Thread / Class 8.8 Steel / Zinc CR+3
Family: 815
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M8-1.00
Length
55mm
Thread Type
Fine
Material
Steel
Grade
Class 8.8
Finish
Zinc
Drive
External Hex
Head Style
Hex Head
Standard
DIN 931/933, DIN 960
Country of Origin
Import
Thread Pitch
1.00mm
Thread Class
Fine
Tensile Strength
116000
Hardness
C22 - C32
RoHS Compliance
RoHS Compliant
Measurement System
Metric
SKU
815636-100
