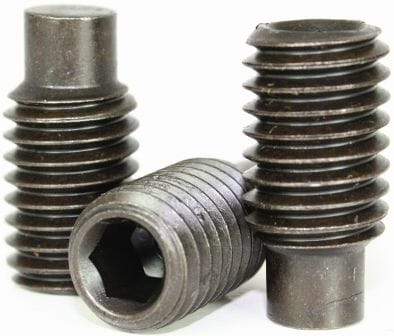

M6-1.00 x 8mm Dog Point Socket Set Screws / Alloy Steel / Plain
- Steel
- Black Oxide
- 1.00mm · Coarse
- ASME B18.3, ASTM F835, DIN 915
$34.84
$0.348 / pc
Package of 100
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
M6-1.00 x 8mm Dog Point Socket Set Screws / Alloy Steel / Plain
RoHS Compliant
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$34.84
$0.348/pc
.50 x 4mm Allen Set Screw 45H Alloy Steel (DIN 915)
Family: 833
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M6-1.00
Length
8mm
Thread Type
Coarse
Material
Steel
Finish
Black Oxide
Drive
Hex Socket (Allen)
Head Style
Headless (Set Screw)
Standard
ASME B18.3, ASTM F835, DIN 915
Thread Pitch
1.00mm
Thread Class
Coarse
Point Type
Full Dog
Tensile Strength
180000
Hardness
C37 - C45
RoHS Compliance
RoHS Compliant
Measurement System
Metric
SKU
833072-100
