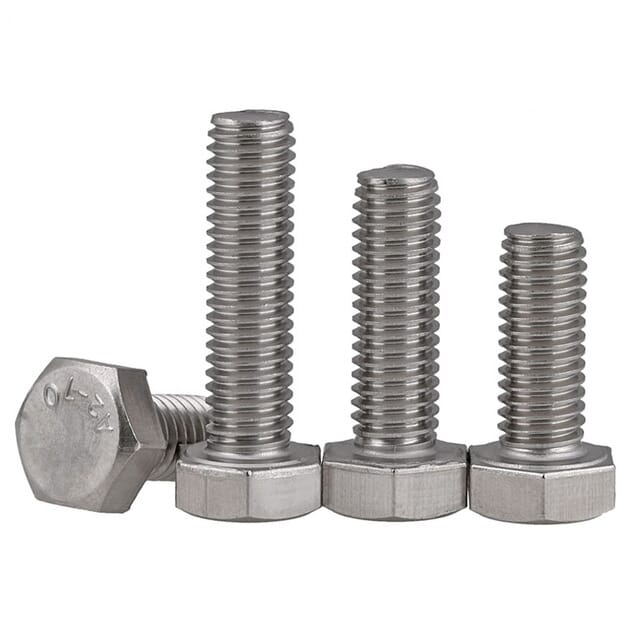

M4-0.7 x 22 mm Hex Cap Screws
$374.16
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M4-0.7 x 22 mm Hex Cap Screws
Specifications
| Finish | Passivated |
|---|---|
| Size | M4-0.70 |
| Length | 22mm |
| Head Style | Hex Head |
| Drive | External Hex |
| Thread Pitch | 0.70mm |
| Thread Class | Coarse |
| Hardness | B80 - C32 |
| Tensile Strength | 101500 |
| Standard | DIN 933 / ISO 4017 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
| Head Height | 2.8 mm |
| Width Across Flats | 7 mm |
RoHS CompliantStainless
Frequently Asked Questions
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
.50 x 190mm Hex Bolt A2-70 Full Thread (DIN 933)
Family: 830
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M4-0.70
Thread Type
Metric Coarse
Head Style
Hex Head
Country of Origin
Import
Thread Pitch
0.70mm
Tensile Strength
101500
Hardness
B80 - C32
SKU
830002-4000
