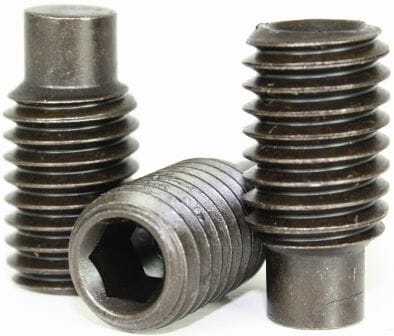

M3-0.50 x 25mm Full Dog Point Socket Set Screws / Alloy Steel / DIN 915
$118.27
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M3-0.50 x 25mm Full Dog Point Socket Set Screws / Alloy Steel / DIN 915
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Black Oxide |
| Size | M3-0.50 |
| Length | 25mm |
| Head Style | Headless (Set Screw) |
| Drive | Hex Socket (Allen) |
| Thread Pitch | 0.5mm |
| Thread Class | Coarse |
| Point Type | Full Dog |
| Hardness | C24 - C36 |
| Standard | ASME B18.3 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
.50 x 4mm Allen Set Screw 45H Alloy Steel (DIN 915)
Family: 833
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M3-0.50
Thread Type
Metric Coarse
Material
Alloy Steel
Head Style
Headless (Set Screw)
Thread Pitch
0.5mm
Hardness
C24 - C36
SKU
833023-200
